Ultra High Strength Material TPU-LCF30

  • Model number: TPU-LCF-BCA3
  • Matrix Resin: Thermoplastic polyurethane (TPU)
  • Reinforcing Filler: Long carbon fiber
  • Appearance: Granules
  • Grade: Injection/extrusion grade
  • Packaging: 25kgs/bag
Send Inquiry Now

TPU-LCF30 Material Overview

TPU-LCF30 (Thermoplastic Polyurethane with 30% Carbon Fiber) is an ultra-high-performance composite material that combines the flexibility and resilience of TPU with the superior strength, stiffness, and wear resistance provided by 30% carbon fiber reinforcement. This composition significantly enhances mechanical, thermal, and wear-resistant properties, making it ideal for heavy-duty applications that demand high strength, durability, and moderate flexibility.

Mechanical Performance

With 30% carbon fiber, TPU-LCF30 offers outstanding mechanical properties, making it suitable for high-stress applications requiring exceptional strength and wear resistance.

  • Tensile Strength: ≥ 90 MPa
  • Flexural Strength: ≥ 200 MPa
  • Impact Strength: ≥ 60 kJ/m²

The increased carbon fiber content maximizes stiffness and durability, making TPU-LCF30 an ideal choice for load-bearing components and parts subjected to high mechanical stress.

Thermal and Chemical Resistance

The enhanced carbon fiber reinforcement improves TPU-LCF30’s thermal performance, allowing it to operate in more challenging environments with higher temperatures.

  • Heat Deflection Temperature (HDT): Approx. 160°C
  • Long-Term Service Temperature: Up to 130°C

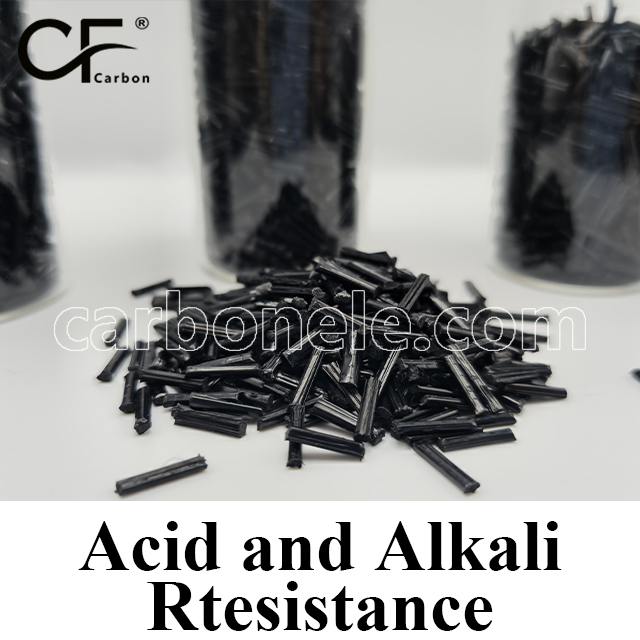

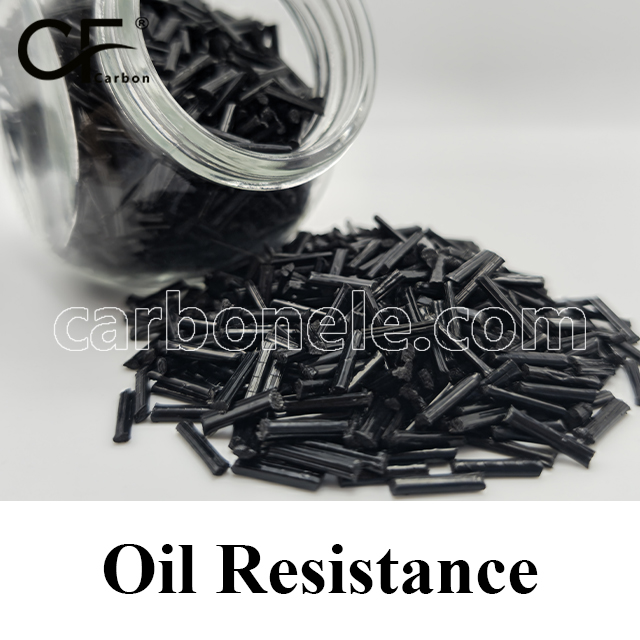

  • Chemical Resistance: Excellent resistance to oils, solvents, and mild acids, suitable for harsh industrial environments.

Wear Resistance and Processing Characteristics

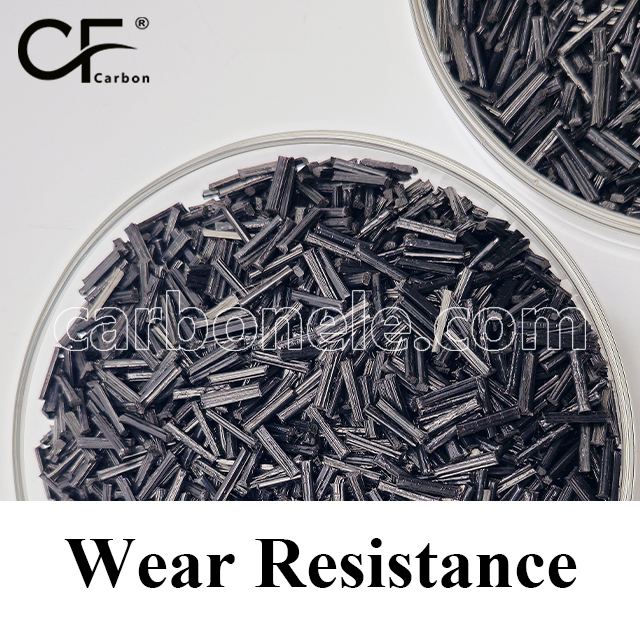

TPU-LCF30 exhibits superior wear and abrasion resistance, making it ideal for components that experience constant friction or high wear. However, the higher carbon fiber content reduces flexibility slightly and may require optimized processing conditions.

  • Wear Resistance: Very high resistance under high-friction conditions.
  • Processing Methods: Compatible with injection molding, extrusion, and 3D printing, though processing adjustments (e.g., higher temperature and pressure) are necessary due to increased fiber content.

Environmental Adaptability

TPU-LCF30 retains its low water absorption and excellent dimensional stability, even in humid or outdoor conditions, ensuring reliable performance in demanding industrial and environmental applications.

Applications

Thanks to its enhanced mechanical, thermal, and wear-resistant properties, TPU-LCF30 is suitable for a wide range of demanding applications, including:

  • Automotive Industry: Heavy-duty brackets, structural reinforcements, engine covers, and high-load components.
  • Consumer Electronics: Robust housings, protective casings, and load-bearing structural parts.
  • Industrial Manufacturing: High-durability gears, bearings, seals, and connectors.
  • Sports Equipment: Durable frames, high-strength grips, and performance-critical components.

Summary Table for TPU-LCF30

Characteristic Value/Description
Carbon Fiber Content 30%
Tensile Strength ≥ 90 MPa
Flexural Strength ≥ 200 MPa
Impact Strength ≥ 60 kJ/m²
Heat Deflection Temperature Approx. 160°C
Long-Term Service Temperature Up to 130°C
Chemical Resistance Excellent resistance to oils, mild acids, solvents
Water Absorption Low
Processing Methods Injection molding, extrusion, 3D printing
Wear Resistance Very high resistance under high-friction conditions

If you want to get more information about TPU-LCF30, you can vist our Youtube.

You can click here to contact us.

Friction coefficient of TPU-LCF

The friction coefficient of TPU is typically between 0.3 and 0.5, while TPU-CF, with added carbon fiber, lowers the friction coefficient to between 0.2 and 0.4. The smaller the value, the better the wear resistance. Therefore, TPU-LCF generally offers better wear resistance than pure TPU, especially under high-load conditions.

Send Inquiry Now

The tensile strength of TPU is typically 30-60 MPa, while TPU-LCF, enhanced with carbon fiber, has a tensile strength of 70-120 MPa. Therefore, TPU-LCF is significantly stronger than pure TPU, making it more suitable for high-strength applications.

Related Product

Wear-resistant TPU LCF Composites
Wear-resistant TPU LCF Comp...
TPU-LCF60: Ultimate High-Strength Composite Material
TPU-LCF60: Ultimate High-St...
TPU-LCF40: Ultra-High-Strength Material
TPU-LCF40: Ultra-High-Stren...
TPU-LCF50: Extreme-Strength Composite Material
TPU-LCF50: Extreme-Strength...
TPU LCF5 China Suppliers Competitive Prices Per KG
TPU LCF5 China Suppliers Co...
Alkali Anti TPU-LCF10: High Strength Material
Alkali Anti TPU-LCF10: High...
Frequently Asked Questions

Carbon (Xiamen) New Material Co., Ltd. aims to provide buyers with "one-stop" worry-free high-quality services. Here you can find all information about carbon fiber engineering plastics. If you still have questions, please send us an email for consultation!

  • How can I contact the manufacturer of a product that interests me?

    When you find a product you are interested in, you can contact the manufacturer directly by sending an email and we will get back to you as soon as possible.

  • How do I find the products that interest me?

    All you need to do is enter the keyword, product name in the search window and press the Enter key on your keyboard. Your search results page will then be displayed. You can also search within the product category pages on the home page. Each category is divided into subcategories, allowing you to refine your search and find products that interest you.

  • Where will I find a buying guide?

    Please contact our after-sales service directly and we will provide you with a comprehensive operating guide.

  • What are CF Reinforced Thermoplastic Composites?

    CF Reinforced Thermoplastic Composites are materials where carbon fibers are incorporated into a thermoplastic matrix. They combine the strength and stiffness of carbon fibers with the processability and recyclability of thermoplastics. For instance, they are used in automotive parts like bumper beams.

  • What are the benefits of CF Reinforced Thermoplastic Composites over traditional composites?

    The key benefits include faster production cycles, easier recyclability, and better impact resistance. They also offer design flexibility. An example is in the manufacturing of consumer electronics casings where complex shapes can be achieved more easily.

  • How are CF Reinforced Thermoplastic Composites processed?

    Common processing methods include injection molding, extrusion, and compression molding. Injection molding is widely used for mass production. For example, in the production of small components for the medical industry.

  • What industries use CF Reinforced Thermoplastic Composites?

    They are utilized in aerospace, automotive, medical, and sports equipment industries. In aerospace, they can be found in interior components. In the medical field, they might be used in prosthetics.

  • How does the carbon fiber content affect the properties of the composites?

    Higher carbon fiber content generally leads to increased strength and stiffness but may reduce ductility. A moderate content is often balanced for specific applications. For example, a higher content might be preferred in structural parts of a race car.

  • What are the challenges in using CF Reinforced Thermoplastic Composites?

    Challenges include higher material costs, complex processing equipment requirements, and ensuring uniform fiber dispersion. Issues with adhesion between the fibers and the matrix can also arise. An example is in achieving consistent quality in large-scale production.
