PEEK-LCF20 is a high-performance thermoplastic reinforced with 20% carbon fiber, offering enhanced mechanical strength, stiffness, and wear resistance compared to lower carbon fiber grades. With excellent thermal and chemical resistance, it is ideal for demanding applications in automotive, industrial manufacturing, aerospace, electronics, and medical devices.
Superior Strength Durability PEEK-LCF20
- Model number: PEEK-LCF-BCA2
- Matrix Resin: Polyetheretherketone (PEEK)
- Reinforcing Filler: Carbon fiber

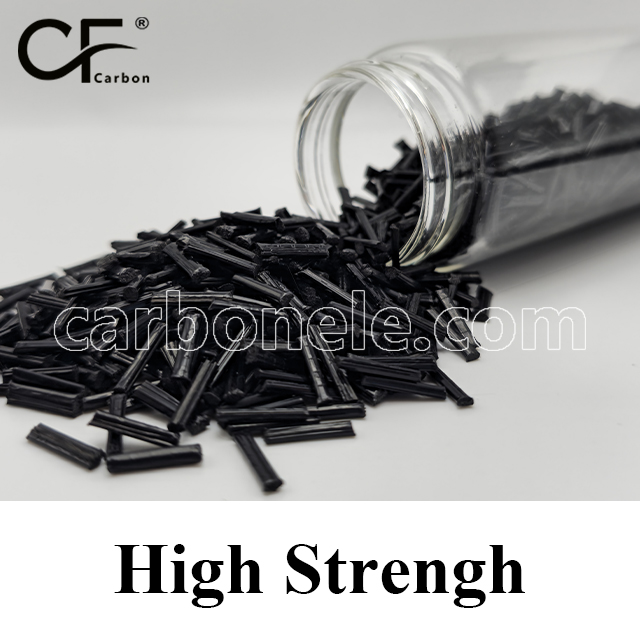

- Appearance: Granules
- Grade: Injection/extrusion grade
- Packaging: 25kgs/bag
PEEK-LCF20 Material Overview
PEEK-LCF20 is a high-performance thermoplastic reinforced with 20% long carbon fiber, designed for applications that require higher mechanical strength, dimensional stability, and chemical resistance. The increased long carbon fiber content enhances stiffness, wear resistance, and mechanical strength, while still retaining the excellent thermal and chemical properties of pure PEEK.
Mechanical Properties
PEEK-LCF20 offers superior mechanical performance compared to PEEK LCF10, making it suitable for applications that require higher strength and wear resistance, especially in more demanding environments.
Tensile Strength: ≥ 250 MPa
Flexural Strength: ≥ 450 MPa
Impact Strength: ≥ 4.0 kJ/m²
With 20% long carbon fiber reinforcement, PEEK LCF20 provides significantly improved stiffness, fatigue resistance, and dimensional stability compared to pure PEEK, making it ideal for high stress applications.
Thermal and Chemical Resistance
PEEK-LCF20 retains the excellent thermal and chemical resistance properties of pure PEEK, performing reliably under a wide range of temperatures and chemical exposures. The increased carbon fiber content has minimal impact on these key characteristics.
Heat Deflection Temperature (HDT): Approx. 340°C
Long-Term Service Temperature: Up to 270°C
Chemical Resistance: Excellent against oils, fuels, solvents, and aggressive chemicals
PEEK-LCF20 is ideal for industrial and automotive applications where both thermal and chemical resistance are crucial.
Wear Resistance and Processing
The 20% carbon fiber reinforcement further enhances wear resistance, making PEEK LCF20 suitable for applications with higher friction and stress. It also allows for more demanding mechanical environments while still offering reasonable processability.
Wear Resistance: Excellent under high friction and stress
Processing Methods: Suitable for injection molding and extrusion at temperatures similar to or slightly higher than those for PEEK LCF10
PEEK-LCF20 offers improved durability and wear resistance over pure PEEK, making it well suited for high performance applications.
Environmental Adaptability
PEEK-LCF20 exhibits low moisture absorption and excellent dimensional stability, ensuring reliable performance even under fluctuating temperature and humidity conditions.
Water Absorption: Low
Dimensional Stability: Excellent, even under varying temperature and humidity environments
Applications
PEEK-LCF20 is ideal for applications where high mechanical strength, thermal stability, and superior wear resistance are required, including:
Automotive: Structural components exposed to high mechanical loads, temperatures, and chemical environments
Industrial Manufacturing: High performance components like gears, bearings, bushings, and seals under intense wear and stress
Aerospace: Lightweight, high strength components for aircraft and spacecraft with high temperature resistance and dimensional stability
Electronics: Durable housings, connectors, and enclosures exposed to high mechanical stresses
Medical Devices: Biocompatible components requiring exceptional durability and resistance to sterilization processes
Summary Table for PEEK-LCF20
| Characteristic | Value/Description |
|---|---|
| Carbon Fiber Content | 20% |
| Tensile Strength | ≥ 250 MPa |
| Flexural Strength | ≥ 450 MPa |
| Impact Strength | ≥ 4.0 kJ/m² |
| Heat Deflection Temperature | Approx. 340°C |
| Long-Term Service Temperature | Up to 270°C |
| Chemical Resistance | Excellent |
| Water Absorption | Low |
| Processing Methods | Injection molding, extrusion |
| Wear Resistance | Excellent under high friction and stress |
If you want to get more information about PEEK-LCF20, you can visit our Youtube.
Strength between PEEK and PEEK-LCF
PEEK-LCF, reinforced with carbon fiber, offers higher tensile and flexural strength, stiffness, and wear resistance than pure PEEK. For example, PEEK-LCF10 (10% carbon fiber) has tensile strength around 200 MPa, making it ideal for high-performance, demanding applications.
Related Product
LCF30-PEEK Composites for S...
High Rigidity PEEK LCF10 fo...
PEEK-LCF40 Unmatched Streng...
Low Price High Quality 40% ...
PEEK-LCF50 Maximum Strength...
PEEK LCF5 for Surgical Robo...
Frequently Asked Questions
Carbon (Xiamen) New Material Co., Ltd. aims to provide buyers with "one-stop" worry-free high-quality services. Here you can find all information about carbon fiber engineering plastics. If you still have questions, please send us an email for consultation!
-
How can I contact the manufacturer of a product that interests me?
When you find a product you are interested in, you can contact the manufacturer directly by sending an email and we will get back to you as soon as possible.
-
How do I find the products that interest me?
All you need to do is enter the keyword, product name in the search window and press the Enter key on your keyboard. Your search results page will then be displayed. You can also search within the product category pages on the home page. Each category is divided into subcategories, allowing you to refine your search and find products that interest you.
-
Where will I find a buying guide?
Please contact our after-sales service directly and we will provide you with a comprehensive operating guide.
-
What are CF Reinforced Thermoplastic Composites?
CF Reinforced Thermoplastic Composites are materials where carbon fibers are incorporated into a thermoplastic matrix. They combine the strength and stiffness of carbon fibers with the processability and recyclability of thermoplastics. For instance, they are used in automotive parts like bumper beams.
-
What are the benefits of CF Reinforced Thermoplastic Composites over traditional composites?
The key benefits include faster production cycles, easier recyclability, and better impact resistance. They also offer design flexibility. An example is in the manufacturing of consumer electronics casings where complex shapes can be achieved more easily.
-
How are CF Reinforced Thermoplastic Composites processed?
Common processing methods include injection molding, extrusion, and compression molding. Injection molding is widely used for mass production. For example, in the production of small components for the medical industry.
-
What industries use CF Reinforced Thermoplastic Composites?
They are utilized in aerospace, automotive, medical, and sports equipment industries. In aerospace, they can be found in interior components. In the medical field, they might be used in prosthetics.
-
How does the carbon fiber content affect the properties of the composites?
Higher carbon fiber content generally leads to increased strength and stiffness but may reduce ductility. A moderate content is often balanced for specific applications. For example, a higher content might be preferred in structural parts of a race car.
-
What are the challenges in using CF Reinforced Thermoplastic Composites?
Challenges include higher material costs, complex processing equipment requirements, and ensuring uniform fiber dispersion. Issues with adhesion between the fibers and the matrix can also arise. An example is in achieving consistent quality in large-scale production.
