PA6-LCF40 is a high strength polyamide 6 composite reinforced with 40% long carbon fiber. It delivers exceptional stiffness, impact resistance, and dimensional stability, making it ideal for structural automotive and industrial components exposed to high loads, vibration, or temperature extremes. Its superior wear and thermal resistance outperform traditional PA6 and short fiber composites.
Reinforced PA6-LCF40 for structural applications
- Model number: PA6-LCF-BCA4
- Matrix Resin: Nylon6 (Polyamide6) (PA6)
- Reinforcing Filler: Carbon fiber
- Appearance: Granules
- Grade: Injection/extrusion grade
- Packaging: 25kgs/bag
Mechanical Properties
PA6-LCF40 is an ultra-high performance polyamide 6 (PA6) composite reinforced with 40% long carbon fiber (LCF), delivering outstanding mechanical strength, stiffness, and fatigue resistance. The elevated LCF content enables exceptional load-bearing capacity and structural integrity under severe dynamic and thermal conditions.
Tensile Strength: ≥ 160 MPa
Flexural Strength: ≥ 240 MPa
Impact Strength: ≥ 14 kJ/m²
PA6-LCF40 achieves a highly optimized balance between extreme rigidity and impact durability, making it ideal for structural applications exposed to continuous vibration, mechanical shock, or long-term load.

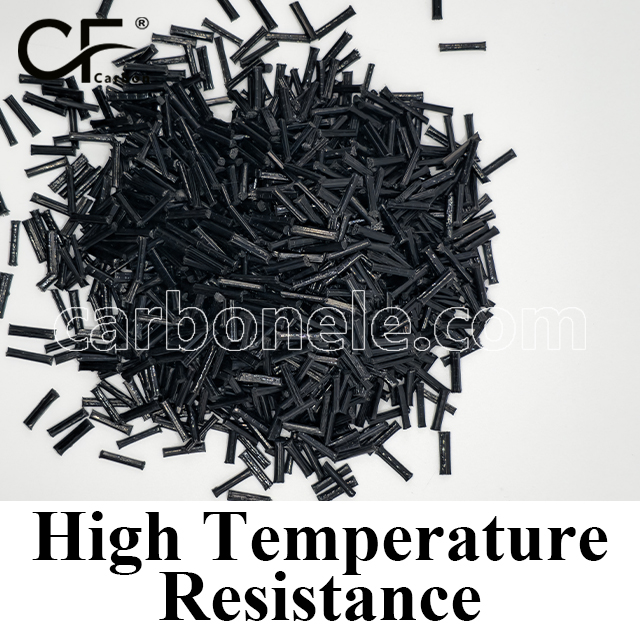

Thermal and Chemical Resistance
PA6-LCF40 provides excellent high temperature performance and long term dimensional stability under chemically aggressive operating conditions.
Heat Deflection Temperature (HDT): Approx. 150°C
Long Term Service Temperature: Up to 135°C
Chemical Resistance: Excellent resistance to oils, greases, fuels, and weak acids; moderate resistance to alkalis; not suitable for strong acids or oxidizing agents
Its superior thermal resistance and chemical profile make it well suited for demanding industrial and under the hood automotive environments.
Wear Resistance and Processing
The 40% LCF reinforcement delivers exceptional wear resistance, low creep, and superior surface durability under continuous load and frictional conditions.
Wear Resistance: Extremely high – designed for severe wear or load cycling
Processing Methods: Injection molding (with specialized LCF feeders), compression molding
Processing Notes: Use low shear settings to maintain fiber integrity; hardened tools are required due to abrasive filler content
Environmental Adaptability
PA6-LCF40 maintains structural precision across a wide range of environmental conditions thanks to its reduced moisture uptake and superior dimensional control.
Water Absorption: Significantly lower than unreinforced PA6
Dimensional Stability: Exceptional – remains stable under high humidity and thermal fluctuation
Applications
PA6-LCF40 is engineered for high performance structural components requiring extreme mechanical and environmental durability. Key sectors include:
Automotive:
Chassis and drivetrain support structures
Under hood load bearing brackets and mountings
Lightweight replacements for aluminum or steel components
Industrial:
Structural machine frames and support arms
Robotic linkages and dynamic assemblies
High load enclosures and housings
Summary Table for PA6-LCF40
| Characteristic | Value/Description |
|---|---|
| Carbon Fiber Content | 40% (Long Carbon Fiber) |
| Tensile Strength | ≥ 160 MPa |
| Flexural Strength | ≥ 240 MPa |
| Impact Strength | ≥ 14 kJ/m² |
| Heat Deflection Temp. | Approx. 150°C |
| Long Term Service Temp. | Up to 135°C |
| Chemical Resistance | Excellent, except strong acids/oxidizers |
| Water Absorption | Lower than standard PA6 |
| Processing Methods | Injection molding, compression molding |
| Wear Resistance | Extremely high – suitable for continuous load |
If you want to get more information about PA6-LCF40, you can vist our Youtube.
Strength Comparsion PA6 and PA6-CF
PA6-CF, reinforced with carbon fiber, exhibits significantly higher strength and stiffness compared to unfilled PA6. While standard PA6 offers good toughness and moderate mechanical properties, the addition of carbon fiber enhances tensile and flexural strength, improving load-bearing capacity and dimensional stability. PA6-CF also has lower creep and reduced thermal expansion, making it more suitable for high performance applications where strength and rigidity are critical. However, PA6 retains better elongation and impact resistance, making it more flexible and less brittle under sudden loads.
