PPEK-CF10 is a composite material made from Polyphenylene Ether Ketone (PPEK) with 10% carbon fiber reinforcement. It offers high temperature resistance, chemical stability, and enhanced stiffness and strength, making it suitable for automotive, electronics, and industrial applications.
Premium Performance Polymer PEEK-CF10
- Model number: PEEK-CF-BCA10
- Matrix Resin: Polyetheretherketone (PEEK)
- Reinforcing Filler: Carbon fiber

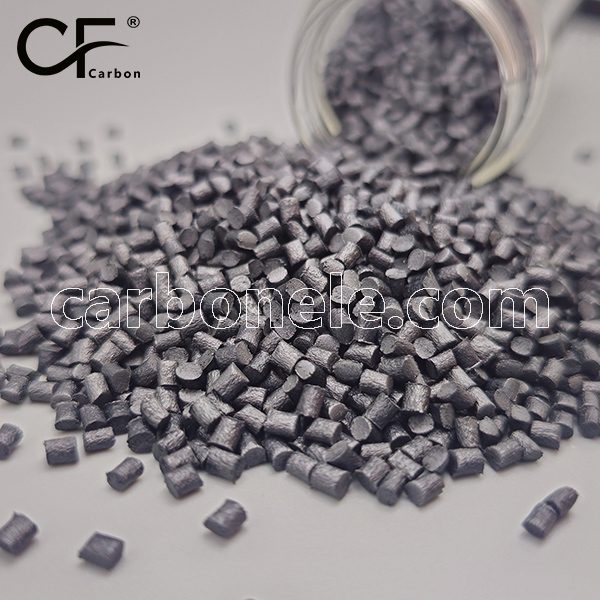

- Appearance: Granules
- Grade: Injection/extrusion grade
- Packaging: 25kgs/bag
PEEK-CF10 Material Overview
PEEK-CF10 is a high-performance engineering plastic reinforced with 10% carbon fiber. It is designed for applications where higher strength, dimensional stability, and chemical resistance are required, with increased reinforcement compared to lower carbon fiber grades. The 10% carbon fiber reinforcement improves stiffness, strength, and wear resistance, while retaining the exceptional thermal and chemical properties of pure PEEK.
Mechanical Properties
PEEK-CF10 offers significantly improved mechanical properties compared to pure PEEK, making it suitable for demanding applications that require high load bearing capabilities and resistance to mechanical stress.
Tensile Strength: ≥ 150 MPa
Flexural Strength: ≥ 220 MPa
Impact Strength: ≥ 3.0 kJ/m²
The 10% carbon fiber reinforcement significantly enhances strength and stiffness, making PEEK CF10 ideal for moderate to heavy duty applications.
Thermal and Chemical Resistance
PEEK CF10 retains the excellent thermal and chemical resistance properties of pure PEEK, making it ideal for high temperature environments and exposure to aggressive chemicals. The added carbon fiber reinforcement does not significantly affect these properties, preserving the material’s thermal stability and chemical resistance.
Heat Deflection Temperature (HDT): Approx. 310°C
Long-Term Service Temperature: Up to 270°C
Chemical Resistance: Excellent resistance to a wide range of industrial chemicals, including oils, fuels, and solvents.
PEEK-CF10 performs reliably in environments exposed to high temperatures and aggressive chemicals.
Wear Resistance and Processing Characteristics
The 10% carbon fiber reinforcement in PEEK CF10 significantly enhances its wear resistance, making it suitable for applications where high friction, continuous motion, or long term stress are present. Compared to lower carbon fiber grades, PEEK CF10 offers superior wear resistance.
Wear Resistance: Excellent under high friction and continuous motion
Processing Methods: Suitable for injection molding and extrusion, with processing temperatures higher than those for non reinforced PEEK, but still manageable within typical thermoplastic processing ranges.
PEEK-CF10 offers good processability, making it suitable for a wide range of applications while maintaining durability and wear resistance.
Environmental Adaptability
PEEK CF10 exhibits excellent environmental stability, including low moisture absorption and high dimensional stability, ensuring reliable performance in environments with fluctuating temperatures or humidity levels.
Water Absorption: Low
Dimensional Stability: Excellent, even under varying temperature and humidity conditions
Applications
PEEK CF10 is ideal for applications that require enhanced mechanical strength, high thermal and chemical stability, and superior wear resistance. Typical applications include:
Automotive Industry: Structural parts, housings, and components exposed to high mechanical loads, heat, and chemicals.
Industrial Manufacturing: Components like gears, bearings, bushings, and seals that experience high friction and mechanical stress.
Aerospace: Critical components requiring high strength, heat resistance, and dimensional stability.
Electronics: Housings, connectors, and enclosures exposed to high temperatures and moderate mechanical stresses.
Medical Devices: Components for medical equipment that require biocompatibility, durability, and resistance to sterilization environments.
Summary Table for PEEK-CF10
| Characteristic | Value/Description |
|---|---|
| Carbon Fiber Content | 10% |
| Tensile Strength | ≥ 150 MPa |
| Flexural Strength | ≥ 220 MPa |
| Impact Strength | ≥ 3.0 kJ/m² |
| Heat Deflection Temperature | Approx. 310°C |
| Long-Term Service Temperature | Up to 270°C |
| Chemical Resistance | Excellent |
| Water Absorption | Low |
| Processing Methods | Injection molding, extrusion |
| Wear Resistance | Excellent |
If you want to get more information about PEEK-CF10, you can visit our Youtube.
Strength between PEEK and PEEK-CF
PEEK offers good strength with a tensile strength of around 90-100 MPa, while PEEK-CF (carbon fiber reinforced) has significantly higher tensile strength (100-200 MPa) and flexural strength (150-250 MPa), providing greater stiffness and wear resistance. However, PEEK-CF may have slightly lower impact strength due to its brittleness from the carbon fiber reinforcement.
Related Product
Enhanced Performance with P...
High Temperature Resistant ...
PEEK-CF05 Premium Performan...
Heat-stable Anti-static PEE...
Wear-Resistant Heat-Stable ...
High Strength PEEK CF5 for ...
Frequently Asked Questions
Carbon (Xiamen) New Material Co., Ltd. aims to provide buyers with "one-stop" worry-free high-quality services. Here you can find all information about carbon fiber engineering plastics. If you still have questions, please send us an email for consultation!
-
How can I contact the manufacturer of a product that interests me?
When you find a product you are interested in, you can contact the manufacturer directly by sending an email and we will get back to you as soon as possible.
-
How do I find the products that interest me?
All you need to do is enter the keyword, product name in the search window and press the Enter key on your keyboard. Your search results page will then be displayed. You can also search within the product category pages on the home page. Each category is divided into subcategories, allowing you to refine your search and find products that interest you.
-
Where will I find a buying guide?
Please contact our after-sales service directly and we will provide you with a comprehensive operating guide.
-
What are CF Reinforced Thermoplastic Composites?
CF Reinforced Thermoplastic Composites are materials where carbon fibers are incorporated into a thermoplastic matrix. They combine the strength and stiffness of carbon fibers with the processability and recyclability of thermoplastics. For instance, they are used in automotive parts like bumper beams.
-
What are the benefits of CF Reinforced Thermoplastic Composites over traditional composites?
The key benefits include faster production cycles, easier recyclability, and better impact resistance. They also offer design flexibility. An example is in the manufacturing of consumer electronics casings where complex shapes can be achieved more easily.
-
How are CF Reinforced Thermoplastic Composites processed?
Common processing methods include injection molding, extrusion, and compression molding. Injection molding is widely used for mass production. For example, in the production of small components for the medical industry.
-
What industries use CF Reinforced Thermoplastic Composites?
They are utilized in aerospace, automotive, medical, and sports equipment industries. In aerospace, they can be found in interior components. In the medical field, they might be used in prosthetics.
-
How does the carbon fiber content affect the properties of the composites?
Higher carbon fiber content generally leads to increased strength and stiffness but may reduce ductility. A moderate content is often balanced for specific applications. For example, a higher content might be preferred in structural parts of a race car.
-
What are the challenges in using CF Reinforced Thermoplastic Composites?
Challenges include higher material costs, complex processing equipment requirements, and ensuring uniform fiber dispersion. Issues with adhesion between the fibers and the matrix can also arise. An example is in achieving consistent quality in large-scale production.
