PPA-CF60 is a high-performance plastic with 60% carbon fiber reinforcement, providing outstanding mechanical strength, thermal stability (up to 320°C), and excellent chemical resistance. Perfect for demanding applications in automotive, aerospace, and industrial sectors, it excels in high-load, high-temperature, and chemically aggressive environments.
PPA-CF60 High-Performance Material
- Model number: PPA-CF-BCA6
- Matrix Resin: Personal Package Archive (PPA)
- Reinforcing Filler: Carbon fiber

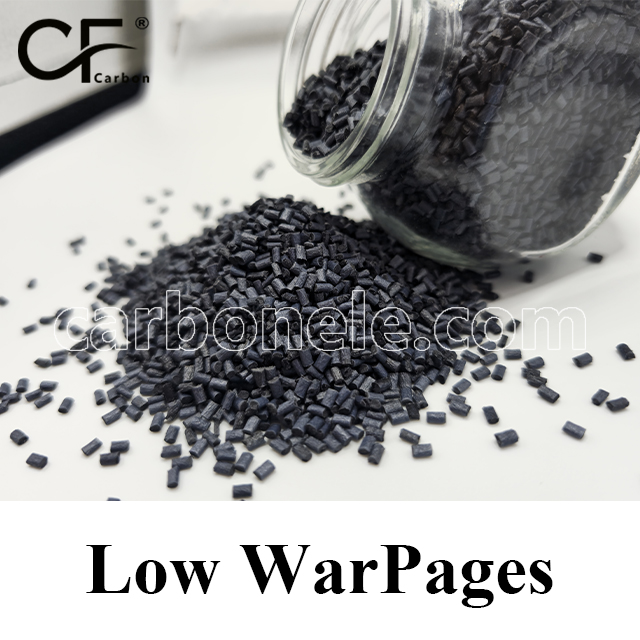

- Appearance: Granules
- Grade: Injection/extrusion grade
- Packaging: 25kgs/bag
PPA-CF60 Material Overview
PPA-CF60 is an ultra-high-performance engineering plastic designed for the most extreme industrial applications that demand exceptional mechanical strength, superior thermal stability, and exceptional chemical resistance. With 60% carbon fiber reinforcement, PPA-CF60 offers significantly higher stiffness, strength, and dimensional stability compared to lower reinforcement grades, while maintaining excellent processability. This material is ideal for applications exposed to extremely high mechanical loads, elevated temperatures, and harsh chemical environments.
Mechanical Properties
PPA-CF60 delivers outstanding mechanical performance with substantially improved strength and stiffness while maintaining good processability. It is designed for high-load applications where maximum strength and dimensional stability are critical.
- Tensile Strength: ≥ 350 MPa (Enhanced by 60% carbon fiber reinforcement)
- Flexural Strength: ≥ 500 MPa
- Impact Strength: ≥ 6 kJ/m² (Optimized for high reinforcement levels)
The 60% carbon fiber content provides exceptional stiffness and strength, making PPA-CF60 ideal for the most demanding mechanical environments.
Thermal and Chemical Resistance
PPA-CF60 excels in extreme thermal and chemical environments, offering exceptional heat resistance and chemical stability.

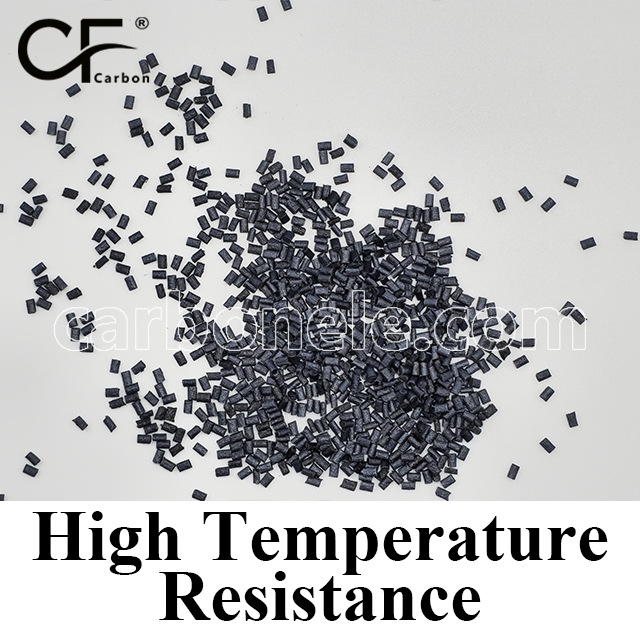

- Heat Deflection Temperature (HDT): Approx. 350°C
- Long-Term Service Temperature: Up to 320°C

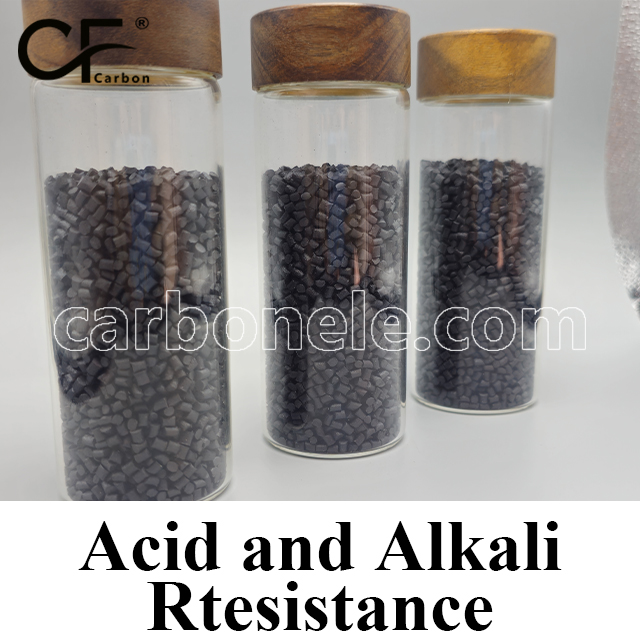

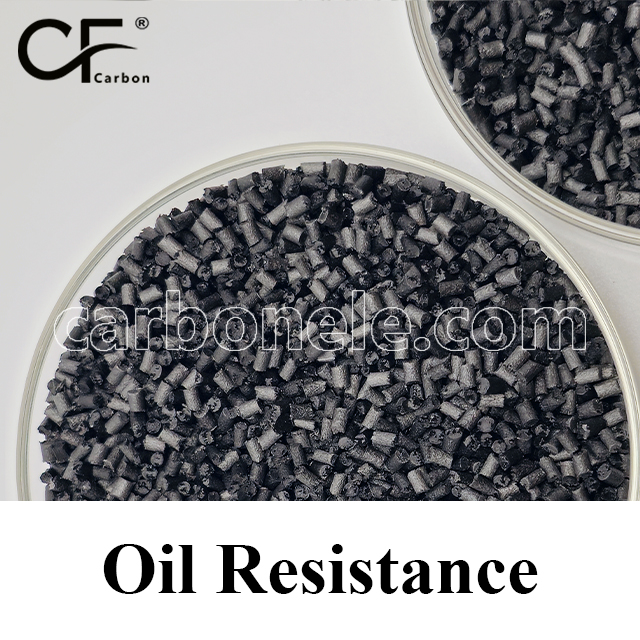

- Chemical Resistance: Excellent resistance to oils, fuels, solvents, and aggressive industrial chemicals
The high carbon fiber content significantly enhances its heat resistance and stability, making PPA-CF60 perfect for high-temperature and chemically aggressive applications.
Wear Resistance and Processing Characteristics
PPA-CF60 is well-suited for applications requiring superior wear resistance, especially under heavy friction or continuous motion. Its increased carbon fiber content improves wear properties while maintaining manageable processing temperatures.
- Wear Resistance: Excellent under heavy friction and continuous motion
- Processing Methods: Suitable for injection molding and extrusion, with slightly higher processing temperatures than lower-reinforced grades, but still within typical thermoplastic ranges
PPA-CF60 offers outstanding durability and rigidity, perfect for applications requiring both wear resistance and ease of processing.
Environmental Adaptability
PPA-CF60 offers excellent environmental stability, with very low water absorption, high dimensional stability, and reliable performance in both humid and chemically aggressive environments.
Applications
PPA-CF60 is designed for ultra-high-performance applications requiring superior mechanical strength, thermal stability, and chemical resistance. Typical applications include:
- Automotive Industry: High-strength engine components, structural parts, and housings exposed to extreme conditions
- Industrial Manufacturing: Heavy-duty gears, bearings, and structural components subjected to high mechanical loads and harsh chemicals
- Aerospace: Critical components requiring high strength, lightweight properties, and high thermal resistance
- Electronics: Enclosures and housings requiring superior strength, heat resistance, and dimensional stability
- Consumer Goods: Durable parts for tools, appliances, and machinery exposed to high mechanical stress and chemicals
Summary Table for PPA-CF60
| Characteristic | Value/Description |
|---|---|
| Carbon Fiber Content | 60% |
| Tensile Strength | ≥ 350 MPa |
| Flexural Strength | ≥ 500 MPa |
| Impact Strength | ≥ 6 kJ/m² |
| Heat Deflection Temperature | Approx. 350°C |
| Long-Term Service Temperature | Up to 320°C |
| Chemical Resistance | Excellent |
| Water Absorption | Very Low |
| Processing Methods | Injection molding, extrusion |
| Wear Resistance | Excellent |
If you want to get more information about PPA-CF60, you can vist our Youtube.
Strength between PPA and PPA-CF
PPA-CF (carbon fiber reinforced) offers significantly higher mechanical strength and rigidity compared to standard PPA. The addition of carbon fiber enhances tensile strength, flexural strength, and wear resistance, making PPA-CF more suitable for heavy loads and extreme environments. While standard PPA is suitable for medium-load and conventional applications, PPA-CF provides superior performance for more demanding industrial conditions.
Related Product
PPA CF40 40% Carbon Fiber P...
PPA CF30 30% Carbon Fiber P...
Top Quality PPA CF5 Thermop...
High Temp Nylon CF PPA Raw ...
High temperature resistance...
Factory Price PPA CF60 Comp...
Frequently Asked Questions
Carbon (Xiamen) New Material Co., Ltd. aims to provide buyers with "one-stop" worry-free high-quality services. Here you can find all information about carbon fiber engineering plastics. If you still have questions, please send us an email for consultation!
-
How can I contact the manufacturer of a product that interests me?
When you find a product you are interested in, you can contact the manufacturer directly by sending an email and we will get back to you as soon as possible.
-
How do I find the products that interest me?
All you need to do is enter the keyword, product name in the search window and press the Enter key on your keyboard. Your search results page will then be displayed. You can also search within the product category pages on the home page. Each category is divided into subcategories, allowing you to refine your search and find products that interest you.
-
Where will I find a buying guide?
Please contact our after-sales service directly and we will provide you with a comprehensive operating guide.
-
What are CF Reinforced Thermoplastic Composites?
CF Reinforced Thermoplastic Composites are materials where carbon fibers are incorporated into a thermoplastic matrix. They combine the strength and stiffness of carbon fibers with the processability and recyclability of thermoplastics. For instance, they are used in automotive parts like bumper beams.
-
What are the benefits of CF Reinforced Thermoplastic Composites over traditional composites?
The key benefits include faster production cycles, easier recyclability, and better impact resistance. They also offer design flexibility. An example is in the manufacturing of consumer electronics casings where complex shapes can be achieved more easily.
-
How are CF Reinforced Thermoplastic Composites processed?
Common processing methods include injection molding, extrusion, and compression molding. Injection molding is widely used for mass production. For example, in the production of small components for the medical industry.
-
What industries use CF Reinforced Thermoplastic Composites?
They are utilized in aerospace, automotive, medical, and sports equipment industries. In aerospace, they can be found in interior components. In the medical field, they might be used in prosthetics.
-
How does the carbon fiber content affect the properties of the composites?
Higher carbon fiber content generally leads to increased strength and stiffness but may reduce ductility. A moderate content is often balanced for specific applications. For example, a higher content might be preferred in structural parts of a race car.
-
What are the challenges in using CF Reinforced Thermoplastic Composites?
Challenges include higher material costs, complex processing equipment requirements, and ensuring uniform fiber dispersion. Issues with adhesion between the fibers and the matrix can also arise. An example is in achieving consistent quality in large-scale production.
