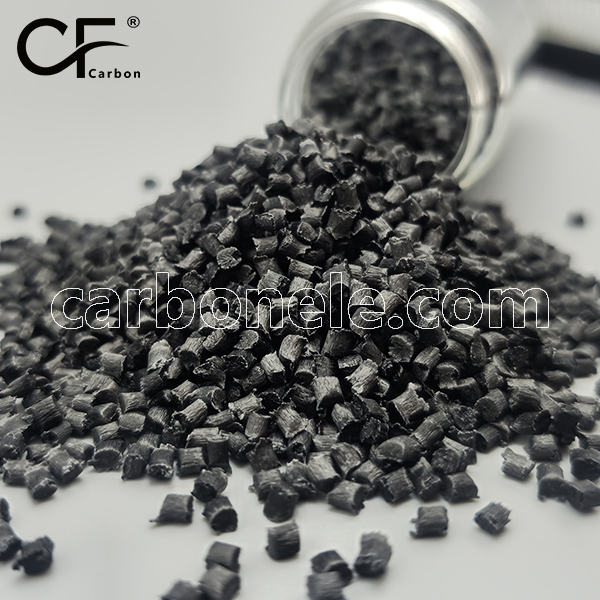

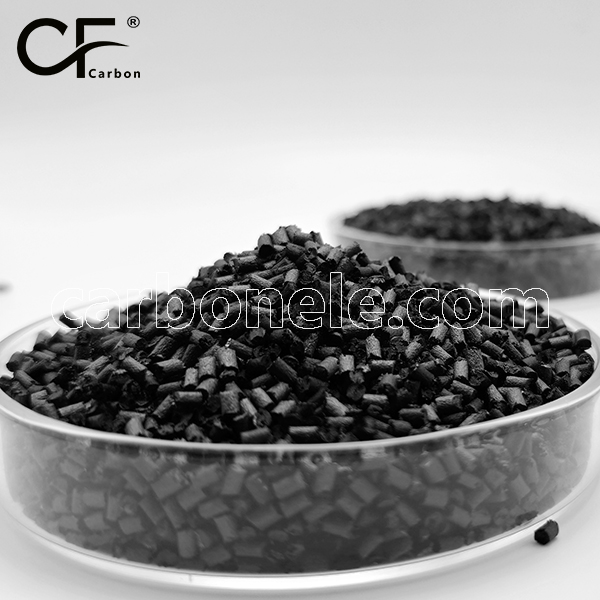

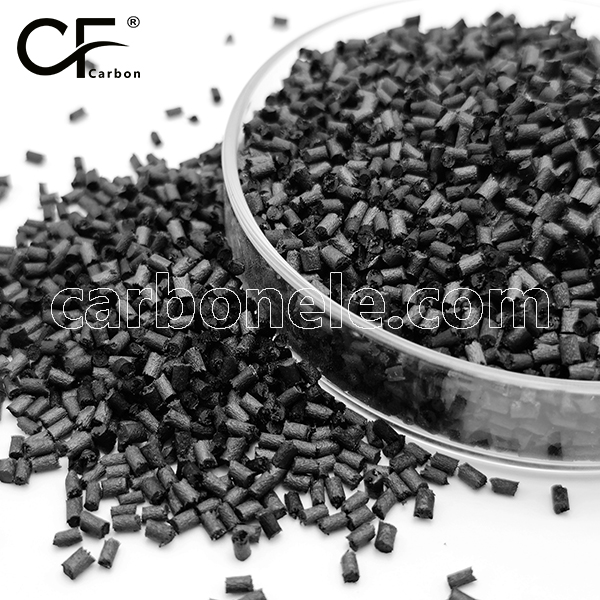

PP CF 30 Plastic Pellets for Injection Molding
PP CF 30 has notable main performance advantages including significantly improved mechanical properties like high strength, high modulus and good impact resistance, enhanced thermal properties such as high temperature resistance and low expansion coefficient, along with good electrical conductivity, processability and being lightweight.
- Manufacturer: Carbon New Material
- OEM/ODM: Acceptable
- Color: Black
- Free Samples: 3-25kgs
- MOQ: 100kgs
- Port: Xiamen, China
- Model: PP-CF-BCA3
- Fillers: Carbon fiber
PP CF 30 Plastic Pellets for Injection Molding
1. Composition Content
PP CF 30 is a carbon fiber-reinforced polypropylene material.
– Polypropylene (PP) Matrix: Polypropylene, as the main component, is a thermoplastic resin and accounts for the majority of the PP CF 30 material. It has good chemical stability, electrical insulation, and processing properties.
– Carbon Fibers: The content of carbon fibers is around 30%. The addition of carbon fibers is a key feature of this material. Carbon fibers possess excellent properties such as high strength, high modulus, high temperature resistance, and corrosion resistance, which can significantly enhance the mechanical properties and other related properties of polypropylene.
2. Main Performance Advantages
– High Strength: Carbon fibers boost PP CF 30’s tensile strength significantly. It’s much stronger than pure polypropylene, suitable for making high-strength components like auto parts and power tool accessories. In stress-bearing structures, it provides reliable strength support.
– High Modulus: Modulus shows a material’s resistance to deformation. PP CF 30’s high modulus makes it less likely to deform under force, ensuring good dimensional stability for applications needing high accuracy.
– Good Impact Resistance: Under impact loads, this material absorbs energy well, showing good impact resistance, enhancing product reliability and safety.
– High Temperature Resistance: Due to carbon fibers’ high thermal stability, PP CF 30 performs well at high temperatures. Compared to ordinary polypropylene, its heat resistance is much better, usable for long in certain high-temperature settings like lighting fixture housings.
– Low Thermal Expansion Coefficient: The material has a low expansion coefficient, so its size changes little with temperature, crucial for high-accuracy applications like electronics components.
– Electrical Conductivity: Carbon fibers’ conductivity gives PP 30 CF some conductive properties, applicable where conductivity or anti-static is needed, like electronic device housings and anti-static packaging.
– Processability: Despite carbon fibers, PP CF 30 keeps good processability. It can be formed by injection molding, extrusion etc., with high production efficiency.
– Lightweight: Polypropylene is low-density. Even with carbon fibers added, the material’s overall density is still small. Meeting strength requirements, it enables product lightweighting, important for automotive and aerospace.
| Application Fields | Product Components | Performance Advantages |
|---|---|---|
| Automotive Manufacturing | Engine peripheral parts, body structural parts, etc. | High strength for stress, heat resistance, lightweight for energy, good processability. |
| Electronics and Electrical Appliances | Electronic device housings, heat dissipation components, etc. | Conductive/anti-static, dimensional stability, good thermal for heat dissipation, sufficient strength for protection. |
| Aerospace | Interior parts, small structural components, etc. | Lightweight, high strength for reliability, good processability for shapes, temperature resistance. |
| Power Tools | Housings, handles, transmission parts, etc. | High strength against forces, good impact resistance, processability for shapes, lightweight for operation. |
| Lighting Fixtures | Lamp housings, etc. | Heat resistance for operation, dimensional stability, conductivity for static prevention, strength against collisions. |
If you’d like to learn more on CF filled pp plastic granules (PP-CF-BCA3) or other CFRTPs, please click here or directly contact Carbon New Material.
Contact Us
If you want to obtain information such as product specifications, performance, and price, choose a suitable product according to your own needs. Meanwhile, you can ask the manufacturer to provide samples for testing to ensure that the material meets your usage requirements. If you are interested in purchasing this composite material, please contact the manufacturer Carbon (Xiamen) New Material directly.
Related Product
Lightweight PP CF20 For Eng...
Carbon Fiber Polypropylene ...
Enhanced Mechanical of PP-CF40
PP-CF50: 50% Carbon Fiber R...
PP CF Plastic Pellet Raw Ma...
High Rigidity PP CF10 For I...
Frequently Asked Questions
Carbon (Xiamen) New Material Co., Ltd. aims to provide buyers with "one-stop" worry-free high-quality services. Here you can find all information about carbon fiber engineering plastics. If you still have questions, please send us an email for consultation!
-
How can I contact the manufacturer of a product that interests me?
When you find a product you are interested in, you can contact the manufacturer directly by sending an email and we will get back to you as soon as possible.
-
How do I find the products that interest me?
All you need to do is enter the keyword, product name in the search window and press the Enter key on your keyboard. Your search results page will then be displayed. You can also search within the product category pages on the home page. Each category is divided into subcategories, allowing you to refine your search and find products that interest you.
-
Where will I find a buying guide?
Please contact our after-sales service directly and we will provide you with a comprehensive operating guide.
-
What are CF Reinforced Thermoplastic Composites?
CF Reinforced Thermoplastic Composites are materials where carbon fibers are incorporated into a thermoplastic matrix. They combine the strength and stiffness of carbon fibers with the processability and recyclability of thermoplastics. For instance, they are used in automotive parts like bumper beams.
-
What are the benefits of CF Reinforced Thermoplastic Composites over traditional composites?
The key benefits include faster production cycles, easier recyclability, and better impact resistance. They also offer design flexibility. An example is in the manufacturing of consumer electronics casings where complex shapes can be achieved more easily.
-
How are CF Reinforced Thermoplastic Composites processed?
Common processing methods include injection molding, extrusion, and compression molding. Injection molding is widely used for mass production. For example, in the production of small components for the medical industry.
-
What industries use CF Reinforced Thermoplastic Composites?
They are utilized in aerospace, automotive, medical, and sports equipment industries. In aerospace, they can be found in interior components. In the medical field, they might be used in prosthetics.
-
How does the carbon fiber content affect the properties of the composites?
Higher carbon fiber content generally leads to increased strength and stiffness but may reduce ductility. A moderate content is often balanced for specific applications. For example, a higher content might be preferred in structural parts of a race car.
-
What are the challenges in using CF Reinforced Thermoplastic Composites?
Challenges include higher material costs, complex processing equipment requirements, and ensuring uniform fiber dispersion. Issues with adhesion between the fibers and the matrix can also arise. An example is in achieving consistent quality in large-scale production.
