PEEK-LCF50 is a high-performance thermoplastic reinforced with 50% long carbon fiber, offering superior mechanical strength, exceptional wear resistance, and excellent thermal and chemical stability. Ideal for demanding applications in automotive, aerospace, and industrial sectors, it withstands extreme temperatures (up to 280°C) and aggressive chemicals, providing long-term durability and reliability in high-stress environments.
PEEK-LCF50 Maximum Strength Endurance
- Model number: PEEK-LCF-BCA5
- Matrix Resin: Polyetheretherketone (PEEK)
- Reinforcing Filler: Carbon fiber
- Appearance: Granules
- Grade: Injection/extrusion grade
- Packaging: 25kgs/bag
PEEK-LCF50 Material Overview
PEEK-LCF50 is an advanced high performance thermoplastic that is reinforced with 50% long carbon fiber, designed for extreme applications that demand unparalleled mechanical strength, exceptional dimensional stability, and outstanding chemical resistance. The higher carbon fiber content provides superior stiffness, enhanced wear resistance, and greater mechanical strength, all while preserving the outstanding thermal and chemical properties of pure PEEK.
Mechanical Properties
PEEK-LCF50 offers superior mechanical performance compared to PEEK-LCF40, making it the ideal choice for applications requiring even higher strength, wear resistance, and dimensional stability under the most demanding conditions.
Tensile Strength: ≥ 350 MPa
Flexural Strength: ≥ 600 MPa
Impact Strength: ≥ 2.8 kJ/m²
With a 50% long carbon fiber reinforcement, PEEK-LCF50 delivers exceptional stiffness, fatigue resistance, and dimensional stability, making it perfect for high stress applications and environments where extreme durability is crucial.
Thermal and Chemical Resistance
PEEK-LCF50 retains the outstanding thermal and chemical resistance characteristics of pure PEEK, with minimal effect from the higher carbon fiber content. This ensures reliable performance in harsh chemical environments and under extreme temperature conditions.
Heat Deflection Temperature (HDT): Approx. 370°C
Long-Term Service Temperature: Up to 280°C

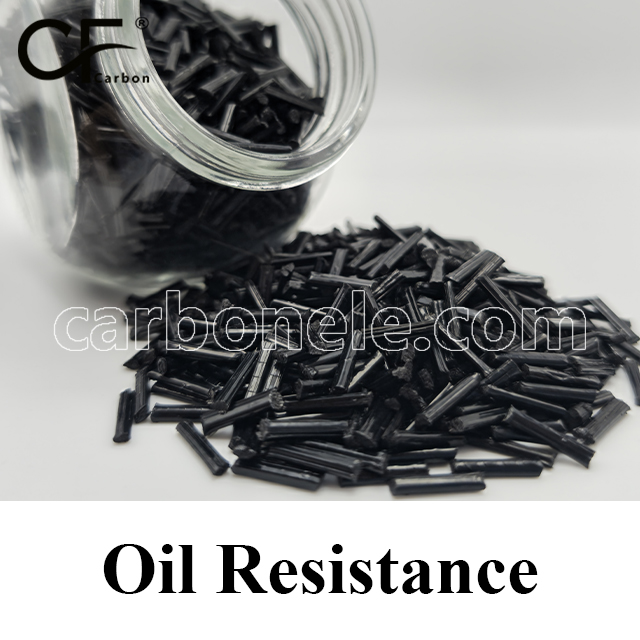

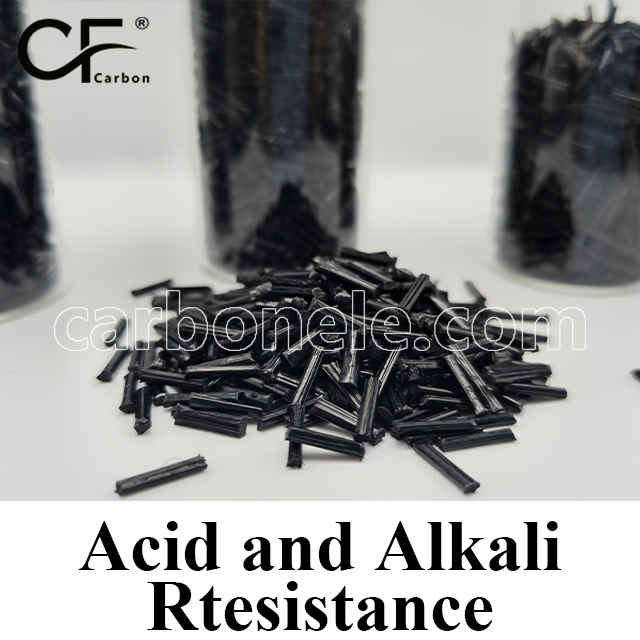

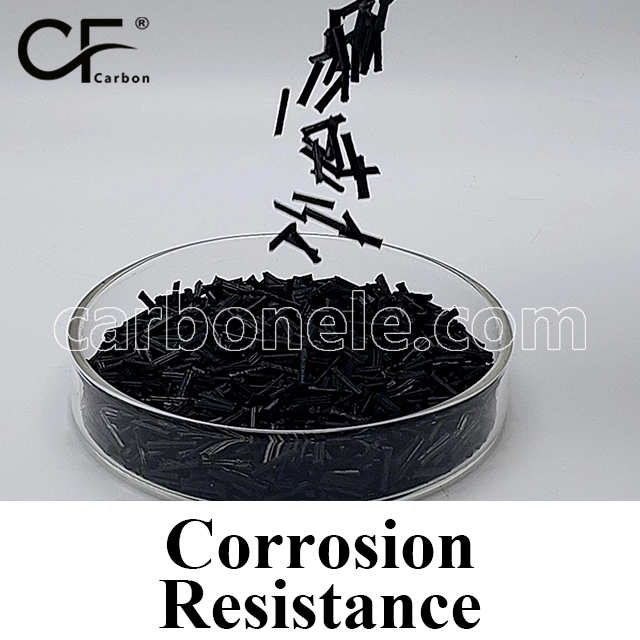

Chemical Resistance: Excellent against oils, fuels, solvents, and aggressive chemicals
PEEK-LCF50 is particularly suited for industrial, automotive, and aerospace applications where both high thermal stability and resistance to aggressive chemicals are critical.

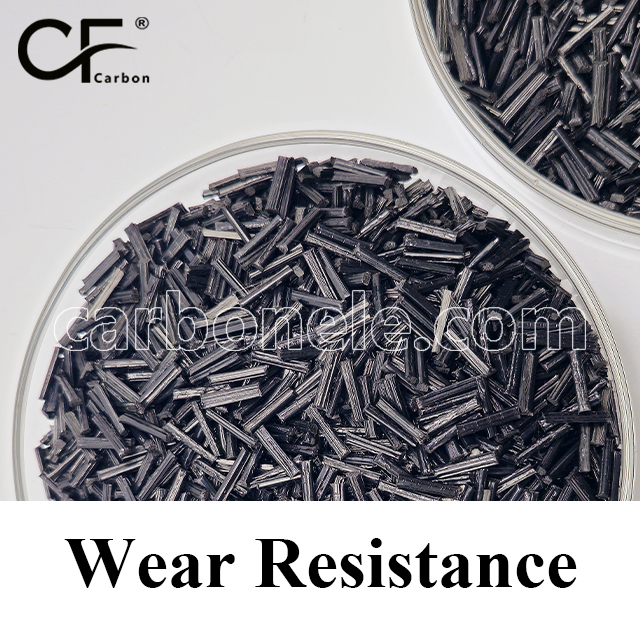

Wear Resistance and Processing
The 50% carbon fiber reinforcement greatly enhances wear resistance, making PEEK-LCF50 highly effective in applications exposed to high friction, abrasive environments, and stress. Despite its high reinforcement level, the material retains reasonable processability.
Wear Resistance: Superior under high friction and stress
Processing Methods: Suitable for injection molding and extrusion at temperatures slightly higher than for PEEK-LCF40
PEEK-LCF50 is an extremely durable material ideal for demanding high performance applications that require exceptional wear resistance and long term reliability.
Environmental Adaptability
PEEK-LCF50 exhibits low moisture absorption and exceptional dimensional stability, ensuring it performs reliably even in fluctuating temperature and humidity conditions.
Water Absorption: Low
Dimensional Stability: Excellent, even under varying temperature and humidity environments
Applications
PEEK-LCF50 is perfectly suited for demanding applications where superior mechanical strength, high thermal stability, and exceptional wear resistance are required, including:
Automotive: Structural components exposed to extreme mechanical loads, high temperatures, and aggressive chemicals.
Industrial Manufacturing: High performance components like gears, bearings, bushings, and seals subjected to intense wear and stress.
Aerospace: Lightweight, high strength components for aircraft and spacecraft requiring high temperature resistance and dimensional stability.
Electronics: Durable housings, connectors, and enclosures exposed to high mechanical stresses.
Medical Devices: Biocompatible components requiring exceptional durability and resistance to sterilization processes.
Summary Table for PEEK-LCF50
| Characteristic | Value/Description |
|---|---|
| Carbon Fiber Content | 50% |
| Tensile Strength | ≥ 350 MPa |
| Flexural Strength | ≥ 600 MPa |
| Impact Strength | ≥ 2.8 kJ/m² |
| Heat Deflection Temperature | Approx. 370°C |
| Long-Term Service Temperature | Up to 280°C |
| Chemical Resistance | Excellent |
| Water Absorption | Low |
| Processing Methods | Injection molding, extrusion |
| Wear Resistance | Superior under high friction and stress |
If you want to get more information about PEEK-LCF50, you can visit our Youtube.
Strength between PEEK and PEEK-LCF
PEEK-LCF, reinforced with carbon fiber, offers higher tensile and flexural strength, stiffness, and wear resistance than pure PEEK. For example, PEEK-LCF10 (10% carbon fiber) has tensile strength around 200 MPa, making it ideal for high-performance, demanding applications.
Related Product
High-temperature Resistance...
Unmatched Strength Durabili...
High Heat Resistance LCF40-...
PEEK LCF5 for Surgical Robo...
PEEK-LCF40 Unmatched Streng...
PEEK-LCF10 Superior Strengt...
Frequently Asked Questions
Carbon (Xiamen) New Material Co., Ltd. aims to provide buyers with "one-stop" worry-free high-quality services. Here you can find all information about carbon fiber engineering plastics. If you still have questions, please send us an email for consultation!
-
How can I contact the manufacturer of a product that interests me?
When you find a product you are interested in, you can contact the manufacturer directly by sending an email and we will get back to you as soon as possible.
-
How do I find the products that interest me?
All you need to do is enter the keyword, product name in the search window and press the Enter key on your keyboard. Your search results page will then be displayed. You can also search within the product category pages on the home page. Each category is divided into subcategories, allowing you to refine your search and find products that interest you.
-
Where will I find a buying guide?
Please contact our after-sales service directly and we will provide you with a comprehensive operating guide.
-
What are CF Reinforced Thermoplastic Composites?
CF Reinforced Thermoplastic Composites are materials where carbon fibers are incorporated into a thermoplastic matrix. They combine the strength and stiffness of carbon fibers with the processability and recyclability of thermoplastics. For instance, they are used in automotive parts like bumper beams.
-
What are the benefits of CF Reinforced Thermoplastic Composites over traditional composites?
The key benefits include faster production cycles, easier recyclability, and better impact resistance. They also offer design flexibility. An example is in the manufacturing of consumer electronics casings where complex shapes can be achieved more easily.
-
How are CF Reinforced Thermoplastic Composites processed?
Common processing methods include injection molding, extrusion, and compression molding. Injection molding is widely used for mass production. For example, in the production of small components for the medical industry.
-
What industries use CF Reinforced Thermoplastic Composites?
They are utilized in aerospace, automotive, medical, and sports equipment industries. In aerospace, they can be found in interior components. In the medical field, they might be used in prosthetics.
-
How does the carbon fiber content affect the properties of the composites?
Higher carbon fiber content generally leads to increased strength and stiffness but may reduce ductility. A moderate content is often balanced for specific applications. For example, a higher content might be preferred in structural parts of a race car.
-
What are the challenges in using CF Reinforced Thermoplastic Composites?
Challenges include higher material costs, complex processing equipment requirements, and ensuring uniform fiber dispersion. Issues with adhesion between the fibers and the matrix can also arise. An example is in achieving consistent quality in large-scale production.
