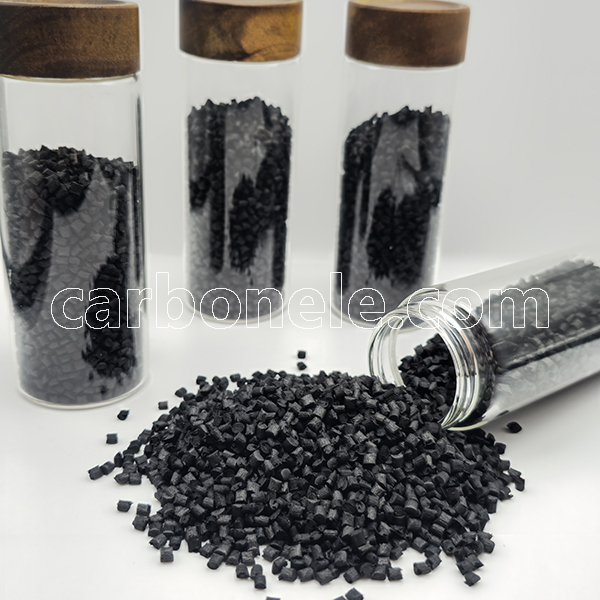

What’s PA66 CF10?

PA66 CF10 refers to a composite material used in 3D printing, specifically Polyamide 66 (PA66) blended with approximately 10% Carbon Fiber (CF) by weight. Here’s what this designation typically entails:

1. Polyamide 66 (PA66): PA66 is a type of engineering thermoplastic known for its high strength, stiffness, and thermal stability. It is commonly used in industrial applications where these properties are crucial.

2. Carbon Fiber (CF): Carbon fiber is a lightweight and extremely strong material known for its high tensile strength, stiffness, and low thermal expansion. When added to PA66, it enhances the mechanical properties of the composite.

3. Composite Properties:
– Strength: The addition of carbon fiber significantly increases the tensile strength and stiffness of PA66 CF10 compared to pure PA66.
– Weight: Despite the added strength, the composite remains relatively lightweight, which is advantageous in applications where weight reduction is beneficial.
– Dimensional Stability: PA66 CF10 exhibits improved dimensional stability and resistance to deformation compared to standard PA66, making it suitable for parts that require precise dimensions.

4. Applications: PA66 CF10 composites are used in various industrial and engineering applications, including automotive components, aerospace parts, tooling, and functional prototypes. The combination of high strength, stiffness, and thermal stability makes it suitable for parts subjected to demanding mechanical and environmental conditions.

5. Printing Considerations: When 3D printing with PA66 CF10 filament, it’s important to consider:
– Printing Temperature: PA66 typically requires higher printing temperatures (around 250°C to 280°C) compared to standard PLA or ABS.
– Bed Temperature: A heated print bed is usually required (around 70°C to 100°C) to ensure good adhesion and minimize warping.
– Printer Compatibility: PA66 CF10 filament may require a printer with a heated chamber or an enclosure to optimize printing conditions and prevent part warping during cooling.

Overall, PA66 CF10 composite filament offers excellent mechanical properties suitable for high-performance applications where strength, stiffness, and durability are paramount.

Features of PA66 CF10

PA66 CF10 composite possesses several notable features that make it a preferred choice for various industrial applications:

1. High Strength: The incorporation of carbon fibers into PA66 significantly enhances its tensile strength and stiffness. This makes PA66 CF10 suitable for producing parts that require robust mechanical properties, such as structural components in automotive and aerospace industries.

2. Lightweight: Despite its enhanced strength, PA66 CF10 remains lightweight due to the low density of carbon fibers. This characteristic is beneficial for applications where weight reduction is crucial, such as in aerospace for reducing fuel consumption or in automotive for improving efficiency.

3. Stiffness and Rigidity: Carbon fiber reinforcement increases the modulus of PA66 CF10, providing excellent stiffness and rigidity. This feature is essential for maintaining dimensional stability and preventing deformation under load, ensuring the accuracy and reliability of printed parts.

4. Chemical Resistance: PA66 is known for its excellent chemical resistance, and this property is retained in PA66 CF10. It can withstand exposure to oils, greases, fuels, and various chemicals, making it suitable for applications in harsh environments.

5. Thermal Stability: PA66 CF10 exhibits good thermal stability and can withstand moderate temperatures without significant degradation. This makes it suitable for applications where parts are subjected to elevated temperatures or thermal cycling.

6. Wear Resistance: The presence of carbon fibers enhances the wear resistance of PA66 CF10, making it suitable for producing parts that undergo friction or abrasion, such as gears, bearings, and mechanical components.

7. Dimensional Accuracy: The combination of high strength and low shrinkage during cooling ensures that PA66 CF10 maintains excellent dimensional accuracy and stability, critical for producing precise and functional prototypes or end-use parts.

8. Electrical Properties: Carbon fibers can impart conductive properties to PA66 CF10, depending on the orientation and dispersion of the fibers. This can be advantageous for applications requiring ESD (electrostatic discharge) protection or electromagnetic shielding.

When considering PA66 CF10, it’s important to optimize printing parameters such as nozzle temperature, bed temperature, and printing speed to achieve the best results. Additionally, ensuring proper ventilation or using a printer with an enclosed chamber can help minimize warping and enhance adhesion between layers.
