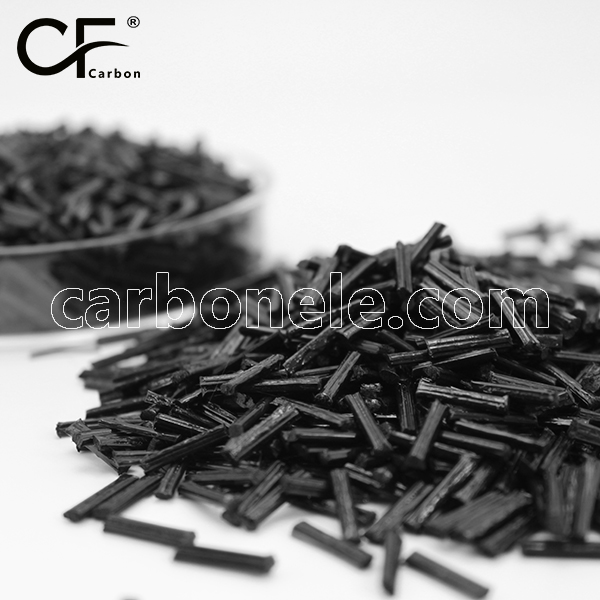

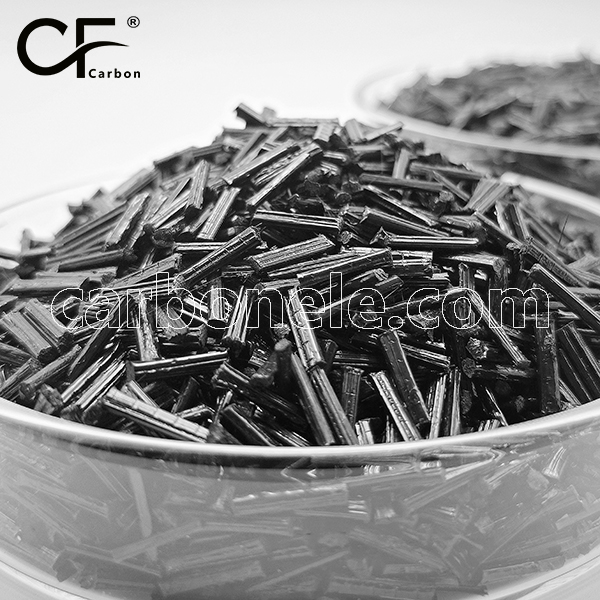

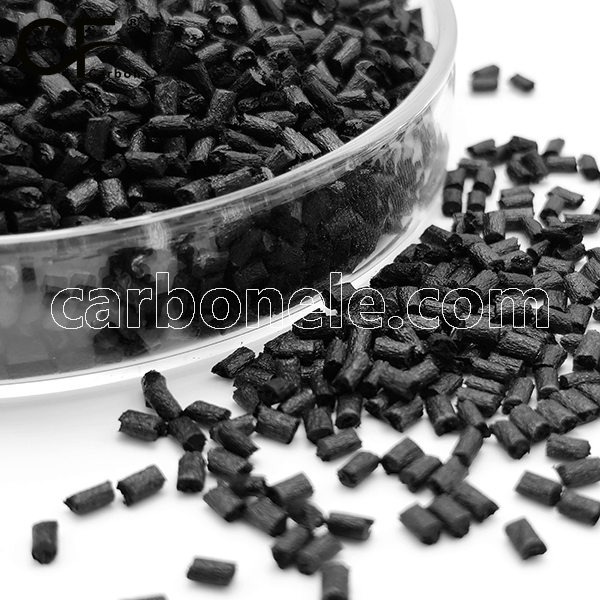

Carbon Fiber Nylon 610 Raw PA610 CF Plastic Materials
PA610 CF plastic materials, with their composition and properties, are widely used in various industries like automotive, aerospace, electronics, and mechanical engineering.
- Manufacturer: Carbon New Material
- OEM/ODM: Acceptable
- Color: Black
- Free Samples: 3-25kgs
- MOQ: 100kgs
- Port: Xiamen, China
- Model: PA610-CF-BCA4
- Fillers: Carbon fiber
Carbon Fiber Nylon 610 Raw PA610 CF Plastic Materials
1. Composition
PA610 CF plastic materials consist mainly of two parts:
– Polyamide 610 (PA610) Matrix: PA610 is the base, known for moderate flexibility, chemical resistance, and good processability. It gives the material basic physical and chemical traits.
– Carbon Fiber (CF) Reinforcement: Carbon fiber is added. Its content usually ranges from 10% to 50% or more. Higher content boosts strength and stiffness more.
2. Main Properties
Mechanical Properties
– High Strength: With carbon fiber reinforcement, PA610 CF has excellent tensile and bending strength. Fibers carry loads well under tension and bending, enhancing overall strength.
– Enhanced Rigidity: Carbon fibers increase rigidity, making the material less likely to deform under force, maintaining shape and stability.
– Good Impact Resistance: PA610 CF can absorb and dissipate energy from impacts to some extent, reducing damage risk.
Thermal Properties
– Moderate Heat Resistance: PA610 CF can handle moderately high temperatures without major mechanical property loss, suitable for applications with normal to slightly elevated temps.
Chemical Properties
– Chemical Resistance: PA610 matrix and carbon fibers together enhance resistance to many common chemicals like acids, bases, and solvents, broadening application range.
Dimensional Stability
– Low Shrinkage and Warpage: PA610 CF shows good dimensional stability, with low tendencies to shrink or warp, ensuring accurate product shapes and dimensions, crucial for precision applications.
| Application Fields | Representative Specific Components | Main Properties |
|---|---|---|
| Automotive Industry | Gears, bearings, gaskets, sealing materials, oil pipelines, etc. | High strength, good impact resistance, anti-fatigue, wear resistance, good dimensional stability, low water absorption rate, favorable heat resistance, suitable for the complex working environment inside automobiles. |
| Electronic and Electrical Field | Battery casings, guides of instruments, various housings, etc. | Excellent electrical properties, certain insulation, good dimensional stability, capable of meeting the high precision requirements of electronic and electrical equipment, and maintaining good performance stability during long-term use. |
| Daily Use Products | Toothbrush bristles | Good mechanical properties, excellent wear resistance and bending recovery, good resilience, not easy to deform after long-term use, containing about 60% bio-based castor oil raw materials, being green, environmentally friendly and renewable. |
Note: This table presents PA610 CF’s application fields, specific components, and main properties. It shows how its characteristics suit different uses. Highlighting these details helps understand its versatility and importance in various industries.
Owing to distinct market requirements, various manufacturers will place different emphases on the properties of materials like PA610-CFR. Likewise, carbon fiber reinforced thermoplastic composites can also vary in performance on account of diverse factors such as the type of matrix resin, the content and kind of carbon fiber, as well as the production process.
If you would like to buy this material, please do not hesitate to send us an inquiry.
Learn more info about CFR-PA610 composites, please directly contact Carbon New Material (Xiamen) Co., Ltd or click here.
Contact Us
If you want to obtain information such as product specifications, performance, and price, choose a suitable product according to your own needs. Meanwhile, you can ask the manufacturer to provide samples for testing to ensure that the material meets your usage requirements. If you are interested in purchasing this composite material, please contact the manufacturer Carbon (Xiamen) New Material directly.
Related Product
High Quality PA610 CF50 For...
Factory Price PA610 CF20 20...
PA610 CF5 Nylon 610 5% Carb...
Conductive PA610 CF60 Compo...
Anti-UV PA610 CF30 Plastic ...
High Strength PA610 CF10 Co...
Frequently Asked Questions
Carbon (Xiamen) New Material Co., Ltd. aims to provide buyers with "one-stop" worry-free high-quality services. Here you can find all information about carbon fiber engineering plastics. If you still have questions, please send us an email for consultation!
-
How can I contact the manufacturer of a product that interests me?
When you find a product you are interested in, you can contact the manufacturer directly by sending an email and we will get back to you as soon as possible.
-
How do I find the products that interest me?
All you need to do is enter the keyword, product name in the search window and press the Enter key on your keyboard. Your search results page will then be displayed. You can also search within the product category pages on the home page. Each category is divided into subcategories, allowing you to refine your search and find products that interest you.
-
Where will I find a buying guide?
Please contact our after-sales service directly and we will provide you with a comprehensive operating guide.
-
What are CF Reinforced Thermoplastic Composites?
CF Reinforced Thermoplastic Composites are materials where carbon fibers are incorporated into a thermoplastic matrix. They combine the strength and stiffness of carbon fibers with the processability and recyclability of thermoplastics. For instance, they are used in automotive parts like bumper beams.
-
What are the benefits of CF Reinforced Thermoplastic Composites over traditional composites?
The key benefits include faster production cycles, easier recyclability, and better impact resistance. They also offer design flexibility. An example is in the manufacturing of consumer electronics casings where complex shapes can be achieved more easily.
-
How are CF Reinforced Thermoplastic Composites processed?
Common processing methods include injection molding, extrusion, and compression molding. Injection molding is widely used for mass production. For example, in the production of small components for the medical industry.
-
What industries use CF Reinforced Thermoplastic Composites?
They are utilized in aerospace, automotive, medical, and sports equipment industries. In aerospace, they can be found in interior components. In the medical field, they might be used in prosthetics.
-
How does the carbon fiber content affect the properties of the composites?
Higher carbon fiber content generally leads to increased strength and stiffness but may reduce ductility. A moderate content is often balanced for specific applications. For example, a higher content might be preferred in structural parts of a race car.
-
What are the challenges in using CF Reinforced Thermoplastic Composites?
Challenges include higher material costs, complex processing equipment requirements, and ensuring uniform fiber dispersion. Issues with adhesion between the fibers and the matrix can also arise. An example is in achieving consistent quality in large-scale production.
