PA6-CF60 is an ultra high performance polyamide 6 composite reinforced with 60% carbon fiber, delivering extreme strength, rigidity, and dimensional stability. With exceptional mechanical durability, minimal creep, and superior wear resistance, it is ideal for aerospace, automotive, and industrial applications requiring maximum performance under extreme conditions. Featuring high thermal stability (HDT ~180°C) and reduced moisture absorption, PA6-CF60 ensures long-term reliability in demanding environments.
PA6-CF60 for automotive applications
- Model number: PA6-CF-BCA5
- Matrix Resin: Nylon6 (Polyamide6) (PA6)
- Reinforcing Filler: Carbon fiber

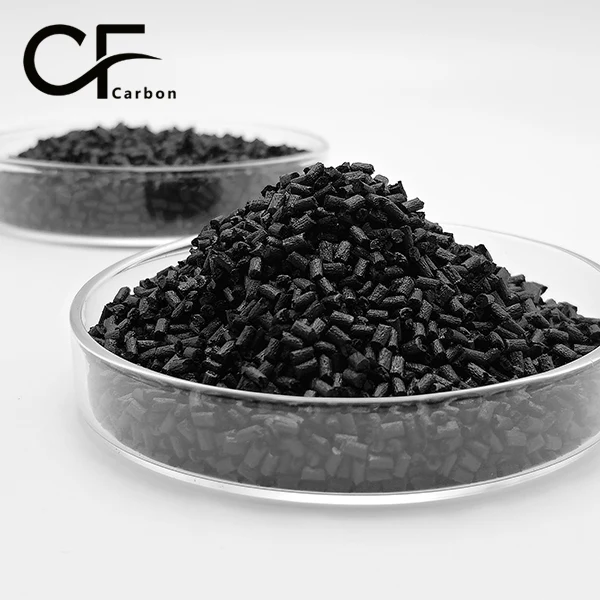

- Appearance: Granules
- Grade: Injection/extrusion grade
- Packaging: 25kgs/bag
PA6-CF60: Ultimate Strength Carbon Fiber Reinforced Polyamide 6
PA6-CF60 is an ultra high performance polyamide 6 (PA6) composite reinforced with 60% carbon fiber, offering extreme strength, rigidity, and superior dimensional stability. With its exceptionally high carbon fiber content, this material provides unmatched mechanical durability, minimal creep, and outstanding resistance to deformation under extreme loads. PA6-CF60 is engineered for the most demanding structural applications, delivering superior fatigue resistance, outstanding wear performance, and long term reliability in high stress environments.
Key Mechanical Properties
Tensile Strength: ≥ 230 MPa
Flexural Strength: ≥ 270 MPa
Notched Impact Strength: ≥ 14 kJ/m²
With 60% carbon fiber reinforcement, PA6-CF60 sets a new standard in mechanical performance while maintaining a lightweight structure, making it an ideal material for aerospace, industrial, and high performance automotive applications.
Thermal and Chemical Resistance
PA6-CF60 delivers exceptional thermal stability and outstanding chemical resistance, ensuring superior durability in extreme conditions.
Heat Deflection Temperature (HDT): Approx. 180°C
Long-Term Service Temperature: Up to 170°C
Chemical Resistance: Excellent resistance to oils, lubricants, and weak acids, but sensitive to strong acids and bases
This ensures long term stability in applications exposed to high temperatures and aggressive chemical environments.
Wear Resistance and Processing
The 60% carbon fiber reinforcement significantly enhances wear resistance and reduces friction, making PA6-CF60 the ultimate choice for applications requiring extreme durability and minimal wear.
Wear Resistance: Exceptional, far superior to unreinforced PA6
Processing Methods: Injection molding, extrusion
Due to the high fiber content, reinforced molds and optimized processing techniques are essential to maintain precision and mechanical integrity during manufacturing.
Environmental Adaptability
PA6-CF60 absorbs significantly less moisture than standard PA6, ensuring maximum dimensional stability and consistent mechanical properties even in humid or fluctuating environments.
Water Absorption: Drastically lower than standard PA6, preventing swelling and mechanical degradation
Dimensional Stability: Maximized, ensuring reliability in varying environmental conditions
These properties make PA6-CF60 the ultimate choice for precision engineered components that must perform under extreme conditions.
Typical Applications
PA6-CF60 is designed for ultra high performance applications that demand maximum mechanical strength, rigidity, and weight efficiency. Common applications include:
Structural Components: Load bearing brackets, frames, and enclosures
Automotive Parts: High strength housings, engine covers, and under the hood components
Aerospace Applications: Ultra lightweight, high rigidity components for aircraft and UAVs
Mechanical Engineering: Gears, sliding rails, and bearing housings for extreme durability
Sports Equipment: High impact, lightweight performance gear
PA6-CF60 Performance Overview
| Property | Value/Description |
|---|---|
| Carbon Fiber Content | 60% |
| Tensile Strength | ≥ 230 MPa |
| Flexural Strength | ≥ 270 MPa |
| Notched Impact Strength | ≥ 14 kJ/m² |
| Heat Deflection Temp. (HDT) | Approx. 180°C |
| Long Term Service Temp. | Up to 170°C |
| Chemical Resistance | Excellent, but sensitive to strong acids and bases |
| Water Absorption | Lower than standard PA6 |
| Processing Methods | Injection molding, extrusion |
| Wear Resistance | Exceptional, far superior to unreinforced PA6 |
If you want to get more information about PA6-CF60.
You can vist our Youtube. Click here to contact us.
Strength Comparsion PA6 and PA6-CF
PA6-CF, reinforced with carbon fiber, exhibits significantly higher strength and stiffness compared to unfilled PA6. While standard PA6 offers good toughness and moderate mechanical properties, the addition of carbon fiber enhances tensile and flexural strength, improving load-bearing capacity and dimensional stability. PA6-CF also has lower creep and reduced thermal expansion, making it more suitable for high performance applications where strength and rigidity are critical. However, PA6 retains better elongation and impact resistance, making it more flexible and less brittle under sudden loads.
