TPU-CF40 is a high-performance composite material that combines the flexibility of TPU with the strength and stiffness of 40% carbon fiber reinforcement. It offers superior tensile strength (≥150 MPa), flexural strength (≥220 MPa), and impact resistance (≥75 kJ/m²), along with excellent thermal stability (up to 170°C). Ideal for automotive, industrial, and consumer applications, TPU-CF40 provides exceptional durability, wear resistance, and reliable performance under demanding conditions.
High Strength TPU-CF40: Wear Resistance Material
- Model number: TPU-CF-BCA4
- Matrix Resin: Thermoplastic polyurethane (TPU)
- Reinforcing Filler: Carbon fiber

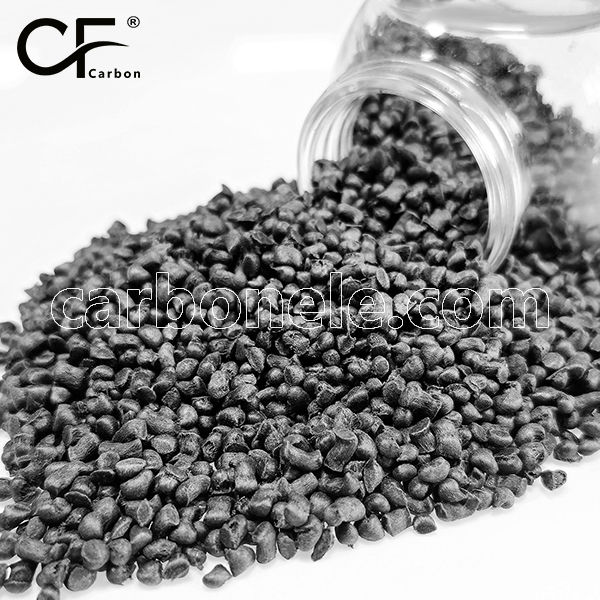

- Appearance: Granules
- Grade: Injection/extrusion grade
- Packaging: 25kgs/bag
Introduction to TPU-CF40 Material
TPU-CF40 (Thermoplastic Polyurethane with 40% Carbon Fiber) is a high-performance thermoplastic elastomeric composite that integrates 40% carbon fiber reinforcement within a TPU (thermoplastic polyurethane) matrix. The increased carbon fiber content further enhances the material’s mechanical properties compared to TPU-CF30, offering even greater strength, stiffness, and durability, while retaining some of TPU’s flexibility. TPU CF40 is ideal for applications demanding exceptional wear resistance, mechanical performance, and thermal stability, making it a preferred choice in automotive, industrial, and premium consumer product sectors.
Characteristics and Values for Enhanced Performance
Carbon Fiber Content: 40%
The 40% carbon fiber reinforcement significantly increases tensile, flexural, and impact strength, enabling the material to withstand higher mechanical loads with reduced deformation.
Tensile Strength: ≥ 150 MPa
Enhanced tensile strength ensures resistance to mechanical stress, making TPU CF40 suitable for applications requiring exceptional load-bearing capabilities.
Flexural Strength: ≥ 220 MPa
Superior flexural strength allows the material to resist bending forces, maintaining its durability and form even under repeated stress.
Impact Strength: ≥ 75 kJ/m²
With high impact resistance, TPU CF40 is well-suited for absorbing shock and sudden mechanical stresses, ensuring reliability in demanding conditions.
Thermal Properties
Heat Deflection Temperature:
Approximately 170°C: Ensures dimensional stability and reliable performance under elevated temperatures.
Long-Term Service Temperature:
Up to 150°C: Retains mechanical properties and dimensional stability during prolonged exposure to high temperatures.
Chemical Stability
Chemical Resistance:
Enhanced resistance to oils, fuels, and solvents compared to TPU-CF30.
Maintains performance in humid or wet environments due tolow moisture absorption.
Processing Characteristics
Compatibility:
TPU-CF40 is compatible withinjection molding, extrusion, and 3D printing techniques.
The increased carbon fiber content improves mechanical performance while remaining feasible for high-precision manufacturing.
Other Characteristics
Low Water Absorption:
Ensures dimensional stability and prevents degradation in humid environments.
Superior Wear Resistance:
Enhanced carbon fiber content improves wear resistance, making it suitable for components under constant friction or repetitive motion.
Applications
Automotive Industry:
High-performance components such as seals, gaskets, bushings, and shock-resistant parts where greater stiffness and strength are crucial.
Industrial Manufacturing:
Ideal for heavy-duty components like conveyor belts, protective covers, and tubing, with improved durability and wear resistance.
Consumer Goods:
Used in premium products like sporting equipment, mobile phone cases, and footwear, offering excellent mechanical performance and longevity.
Summary Table
| Characteristic | Value/Description |
|---|---|
| Carbon Fiber Content | 40% |
| Tensile Strength | ≥ 150 MPa |
| Flexural Strength | ≥ 220 MPa |
| Impact Strength | ≥ 75 kJ/m² |
| Heat Deflection Temp. | Approx. 170°C |
| Long-Term Service Temp. | Up to 150°C |
| Chemical Resistance | Enhanced resistance to oils, fuels, solvents |
| Water Absorption | Low |
| Processing Methods | Injection molding, extrusion, 3D printing |
If you want to get more information aboutTPU-CF40, you can vist our Youtube.

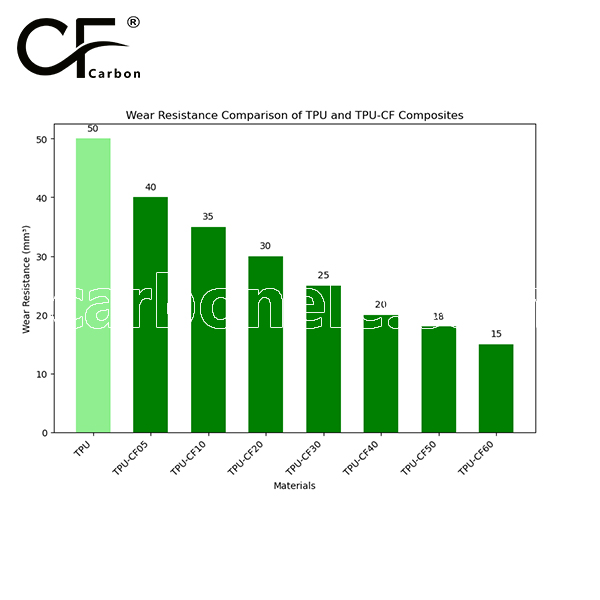

Friction coefficient of TPU-CF
The friction coefficient of TPU is typically between 0.3 and 0.5, while TPU-CF, with added carbon fiber, lowers the friction coefficient to between 0.2 and 0.4. The smaller the value, the better the wear resistance. Therefore, TPU-CF generally offers better wear resistance than pure TPU, especially under high-load conditions.
