High Strength TPU-CF30: Carbon Fiber Reinforced Material

  • Model number: TPU-CF-BCA3
  • Matrix Resin: Thermoplastic polyurethane (TPU)
  • Reinforcing Filler: Carbon fiber

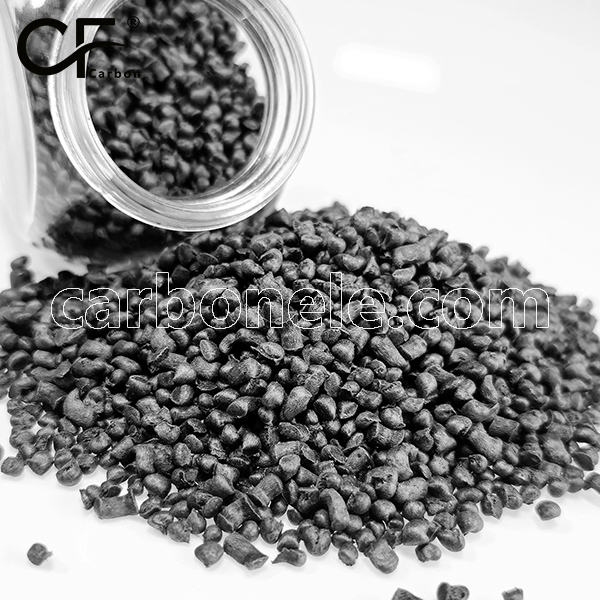

  • Appearance: Granules
  • Grade: Injection/extrusion grade
  • Packaging: 25kgs/bag
Send Inquiry Now

Introduction to TPU-CF30 Material

TPU-CF30 (Thermoplastic Polyurethane with 30% Carbon Fiber) is a high-performance thermoplastic elastomeric composite that integrates 30% carbon fiber reinforcement within a TPU (thermoplastic polyurethane) matrix. This increased carbon fiber content significantly enhances the material’s mechanical properties, offering superior strength, stiffness, and durability, while still preserving the flexibility typical of TPU. TPU-CF30 is well-suited for demanding applications where an optimal balance of elasticity, wear resistance, and exceptional mechanical performance is required. It is commonly used across various industries such as automotive, industrial manufacturing, and consumer products.

Characteristics and Values for Enhanced Performance

Carbon Fiber Content: 30%

The 30% carbon fiber reinforcement in TPU-CF30 substantially improves its tensile and flexural strength, allowing the material to withstand even higher mechanical loads while maintaining a degree of flexibility suitable for numerous applications.

Tensile Strength: ≥ 120 MPa

TPU-CF30 offers enhanced tensile strength, with the capacity to handle elevated mechanical stress without permanent deformation. This makes it ideal for high-performance applications where both strength and flexibility are critical.

Flexural Strength: ≥ 180 MPa

The material exhibits outstanding flexural strength, enabling it to resist bending forces and return to its original shape even after repeated flexing. This ensures exceptional durability in applications subjected to constant flexural stress.

Impact Strength: ≥ 60 kJ/m²

With excellent impact resistance, TPU-CF30 can absorb shock loads effectively, making it suitable for applications exposed to sudden mechanical stresses or impacts.

Thermal Properties

Heat Deflection Temperature: Approximately 160°C

TPU-CF30 remains stable at higher temperatures, providing reliable performance in environments up to 160°C, ensuring long-term reliability under thermal stress.

Long-Term Service Temperature: Up to 140°C

This material retains its mechanical properties and dimensional stability in moderate to high-temperature conditions, making it ideal for prolonged use in demanding thermal environments.

Chemical Stability

TPU-CF30 offers enhanced chemical resistance compared to lower carbon fiber content grades. It provides good resistance to oils, fuels, and solvents, although it may not be as chemically resistant as some specialty composites. Additionally, its low moisture absorption ensures reliable performance in humid or wet conditions.

Processing Characteristics

TPU-CF30 is compatible with standard processing techniques such as injection molding, extrusion, and 3D printing. The increased carbon fiber content improves mechanical performance without significantly complicating the processing, allowing for the production of high-precision, durable components.

Other Characteristics

Low Water Absorption:

TPU-CF30 maintains excellent dimensional stability even when exposed to moisture, making it suitable for use in humid environments.

Superior Wear Resistance:

The higher carbon fiber content enhances wear resistance, making TPU-CF30 ideal for components subjected to friction or repetitive motion, such as seals, gaskets, bushings, and protective covers.

Applications

Automotive Industry:

TPU-CF30 is perfect for high-performance automotive components such as gaskets, seals, bushings, and shock-resistant parts where both flexibility and strength are essential.

Industrial Manufacturing:

Ideal for demanding industrial applications, TPU-CF30 is used in heavy-duty components such as protective covers, conveyor belts, and flexible tubing, where high wear resistance and mechanical durability are required.

Consumer Goods:

TPU-CF30 is employed in premium consumer products such as footwear, mobile phone cases, and sporting equipment, where superior durability and flexibility are paramount.

Summary Table

Characteristic Value/Description
Carbon Fiber Content 30%
Tensile Strength ≥ 120 MPa
Flexural Strength ≥ 180 MPa
Impact Strength ≥ 60 kJ/m²
Heat Deflection Temp. Approximately 160°C
Long-Term Service Temp. Up to 140°C
Chemical Resistance Good resistance to oils, fuels, solvents
Water Absorption Low
Processing Methods Injection molding, extrusion, 3D printing

If you want to get more information aboutTPU-CF30, you can vist our Youtube.

You can click here to contact us.

Friction coefficient of TPU-CF

The friction coefficient of TPU is typically between 0.3 and 0.5, while TPU-CF, with added carbon fiber, lowers the friction coefficient to between 0.2 and 0.4. The smaller the value, the better the wear resistance. Therefore, TPU-CF generally offers better wear resistance than pure TPU, especially under high-load conditions.

Send Inquiry Now

The tensile strength of TPU is typically 30-60 MPa, while TPU-CF, enhanced with carbon fiber, has a tensile strength of 70-120 MPa. Therefore, TPU-CF is significantly stronger than pure TPU, making it more suitable for high-strength applications.

Related Product

High Strength TPU CF20 for Snowboards
High Strength TPU CF20 for ...
High Quality Weather Resistance TPU CF10 Composites
High Quality Weather Resist...
Black Carbon Fiber TPU Composite Materials for TPU-CF PPF
Black Carbon Fiber TPU Comp...
High Strength TPU-CF40: Wear Resistance Material
High Strength TPU-CF40: Wea...
TPU-CF10: High Strength Carbon Fiber Reinforced Material
TPU-CF10: High Strength Car...
Lightweight 40% CF Filled TPU CF40 for Racing Cars
Lightweight 40% CF Filled T...
Frequently Asked Questions

Carbon (Xiamen) New Material Co., Ltd. aims to provide buyers with "one-stop" worry-free high-quality services. Here you can find all information about carbon fiber engineering plastics. If you still have questions, please send us an email for consultation!

  • How can I contact the manufacturer of a product that interests me?

    When you find a product you are interested in, you can contact the manufacturer directly by sending an email and we will get back to you as soon as possible.

  • How do I find the products that interest me?

    All you need to do is enter the keyword, product name in the search window and press the Enter key on your keyboard. Your search results page will then be displayed. You can also search within the product category pages on the home page. Each category is divided into subcategories, allowing you to refine your search and find products that interest you.

  • Where will I find a buying guide?

    Please contact our after-sales service directly and we will provide you with a comprehensive operating guide.

  • What are CF Reinforced Thermoplastic Composites?

    CF Reinforced Thermoplastic Composites are materials where carbon fibers are incorporated into a thermoplastic matrix. They combine the strength and stiffness of carbon fibers with the processability and recyclability of thermoplastics. For instance, they are used in automotive parts like bumper beams.

  • What are the benefits of CF Reinforced Thermoplastic Composites over traditional composites?

    The key benefits include faster production cycles, easier recyclability, and better impact resistance. They also offer design flexibility. An example is in the manufacturing of consumer electronics casings where complex shapes can be achieved more easily.

  • How are CF Reinforced Thermoplastic Composites processed?

    Common processing methods include injection molding, extrusion, and compression molding. Injection molding is widely used for mass production. For example, in the production of small components for the medical industry.

  • What industries use CF Reinforced Thermoplastic Composites?

    They are utilized in aerospace, automotive, medical, and sports equipment industries. In aerospace, they can be found in interior components. In the medical field, they might be used in prosthetics.

  • How does the carbon fiber content affect the properties of the composites?

    Higher carbon fiber content generally leads to increased strength and stiffness but may reduce ductility. A moderate content is often balanced for specific applications. For example, a higher content might be preferred in structural parts of a race car.

  • What are the challenges in using CF Reinforced Thermoplastic Composites?

    Challenges include higher material costs, complex processing equipment requirements, and ensuring uniform fiber dispersion. Issues with adhesion between the fibers and the matrix can also arise. An example is in achieving consistent quality in large-scale production.
