PC-CF20 is a high-performance 20% carbon fiber reinforced polycarbonate composite with enhanced strength, stiffness, and wear resistance compared to unreinforced PC. With a tensile strength of ≥110 MPa, flexural strength of ≥160 MPa, and heat deflection temperature of approx. 160°C, it is ideal for structural components, automotive parts, and industrial applications. Its low moisture absorption and excellent dimensional stability ensure reliable performance in humid and high-temperature environments, suitable for injection molding and extrusion (reinforced tooling required).
High-strength PC-CF20 composite materials
- Model number: PC-CF-BCA2
- Matrix Resin: Polycarbonate (PC)
- Reinforcing Filler: Carbon fiber

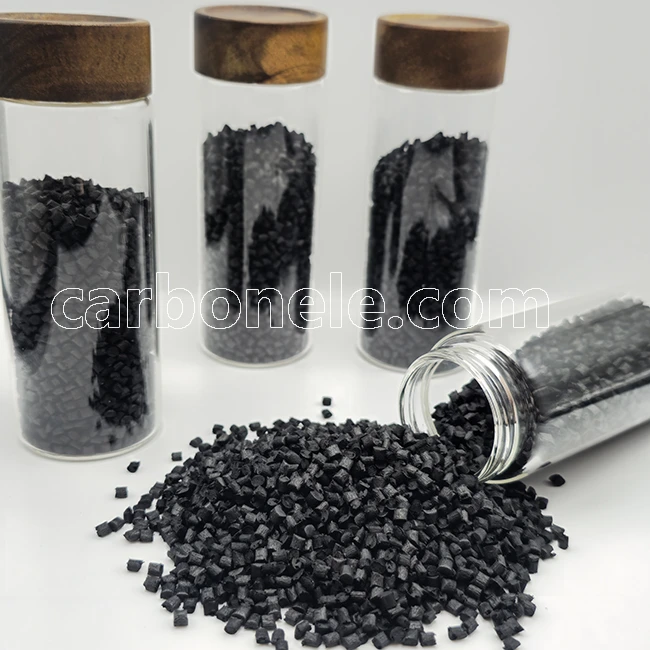

- Appearance: Granules
- Grade: Injection/extrusion grade
- Packaging: 25kgs/bag
Mechanical Properties
PC-CF20 is a high performance polycarbonate-based composite reinforced with 20% carbon fiber, delivering superior stiffness, strength, and dimensional stability compared to unreinforced PC and PC-CF10. The increased carbon fiber content enhances mechanical durability, making it suitable for structural and extreme-performance applications.
Tensile Strength: ≥ 110 MPa
Flexural Strength: ≥ 160 MPa
Impact Strength: ≥ 9.5 kJ/m²
With 20% carbon fiber reinforcement, PC-CF20 provides greater mechanical strength, enhanced wear resistance, and improved load bearing capacity, making it an excellent choice for demanding applications.
Thermal and Chemical Resistance
PC-CF20 maintains the excellent thermal stability and chemical resistance of polycarbonate while benefiting from the increased rigidity and heat resistance provided by carbon fiber reinforcement.
Heat Deflection Temperature (HDT): Approx. 160°C
Long Term Service Temperature: Up to 150°C
Chemical Resistance: Good resistance to oils, weak acids, and solvents, but sensitive to strong alkalies and certain hydrocarbons
PC-CF20 ensures long term stability in moderate temperature and chemically demanding environments, making it suitable for high performance applications.
Wear Resistance and Processing

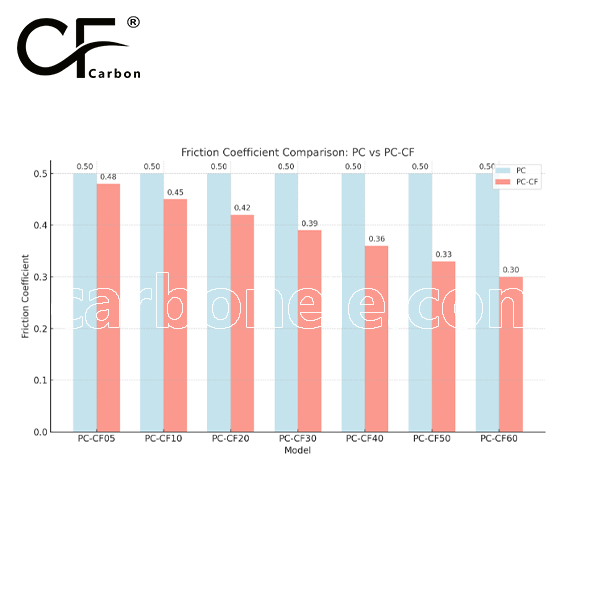

With 20% carbon fiber content, PC-CF20 offers outstanding wear resistance and significantly reduced friction, making it ideal for applications exposed to high mechanical stress, sliding contact, and repetitive movement.
Wear Resistance: Highly improved compared to unreinforced PC
Processing Methods: Injection molding, extrusion (reinforced tooling required)
Due to the higher carbon fiber content, PC-CF20 requires reinforced molds and optimized processing parameters to achieve optimal results in manufacturing.
Environmental Adaptability
PC-CF20 demonstrates low moisture absorption and outstanding dimensional stability, ensuring consistent performance under variable environmental conditions.
Water Absorption: Very low, minimizing swelling and degradation in humid environments
Dimensional Stability: Exceptional, with minimal expansion or contraction under temperature and humidity fluctuations
Applications
PC-CF20 is a high strength, carbon fiber reinforced polycarbonate, ideal for applications demanding superior mechanical performance, dimensional stability, and impact resistance. Its low moisture absorption and enhanced stiffness make it a strong choice for structural and industrial applications.
Automotive
PC-CF20 is widely used in the automotive industry, where lightweight, high strength materials enhance fuel efficiency and durability. It is suitable for:
Structural components that require maximum mechanical strength and stiffness
Brackets and supports exposed to high stress and temperature variations
Interior trim and housings requiring exceptional rigidity and dimensional stability
Summary Table for PC-CF20
| Characteristic | Value/Description |
|---|---|
| Carbon Fiber Content | 20% |
| Tensile Strength | ≥ 110 MPa |
| Flexural Strength | ≥ 160 MPa |
| Impact Strength | ≥ 9.5 kJ/m² |
| Heat Deflection Temp. | Approx. 160°C |
| Long-Term Service Temp. | Up to 150°C |
| Chemical Resistance | Good, but sensitive to strong alkalies and hydrocarbons |
| Water Absorption | Very low |
| Processing Methods | Injection molding, extrusion (reinforced tooling required) |
| Wear Resistance | Highly improved compared to unreinforced PC |
If you want to get more information about PC-CF20, you can visit our Youtube.

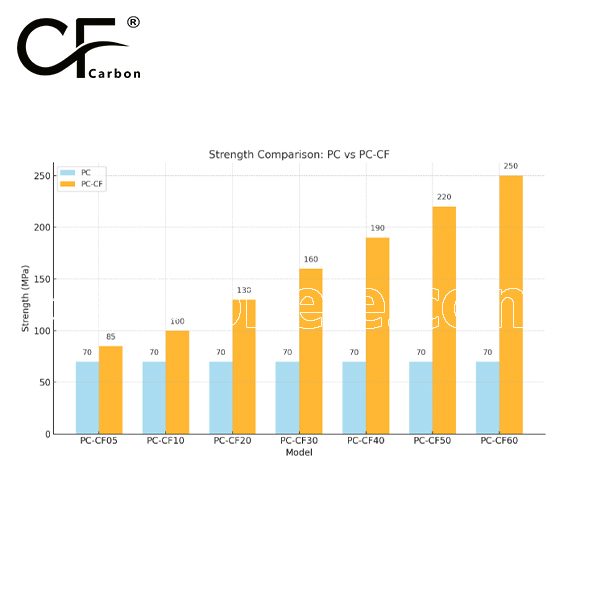

Strength between PC and PC-CF
The strength of PC-CF is higher than unreinforced PC due to the addition of carbon fiber, which enhances tensile and flexural strength, stiffness, and dimensional stability. While standard PC is known for its high impact resistance and toughness, it lacks the rigidity needed for structural applications. PC-CF, with carbon fiber reinforcement, significantly improves stiffness and load-bearing capacity while maintaining good impact resistance. However, higher carbon fiber content may slightly reduce ductility compared to pure PC. This makes PC-CF an ideal choice for applications requiring greater strength, wear resistance, and stability under mechanical stress.
