PA6-LCF30 is a high strength polyamide 6 composite reinforced with 30% long carbon fiber, offering excellent stiffness, impact resistance, and dimensional stability. Ideal for demanding structural and semi-structural applications in automotive and industrial environments, it delivers superior fatigue resistance, thermal endurance, and wear performance.
Heat-resistant PA6-LCF30 for lightly loaded gears
- Model number: PA6-LCF-BCA3
- Matrix Resin: Nylon6 (Polyamide6) (PA6)
- Reinforcing Filler: Carbon fiber

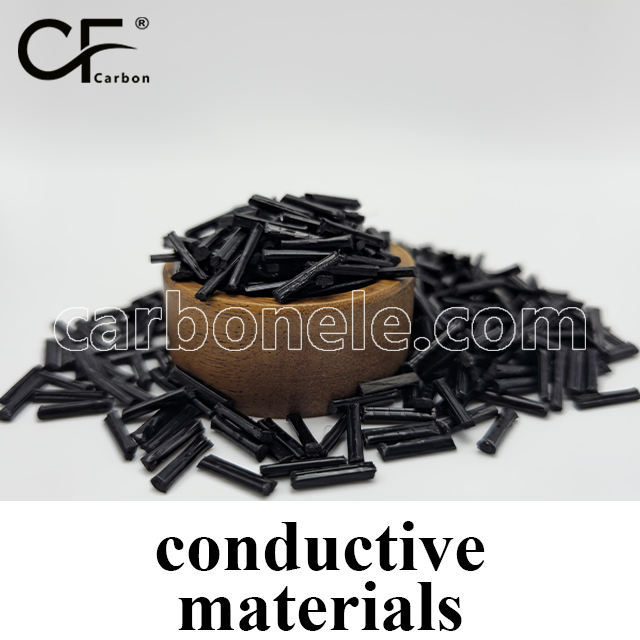

- Appearance: Granules
- Grade: Injection/extrusion grade
- Packaging: 25kgs/bag
Mechanical Properties
PA6-LCF30 is a high performance polyamide 6 (PA6) composite reinforced with 30% long carbon fiber (LCF), delivering exceptional strength, stiffness, and impact resistance. The high long fiber content ensures efficient load transfer and superior fatigue resistance, making it ideal for demanding structural and semi structural applications in harsh mechanical environments.
Tensile Strength: ≥ 145 MPa
Flexural Strength: ≥ 220 MPa
Impact Strength: ≥ 13 kJ/m²
PA6-LCF30 offers a superior balance of high rigidity and impact durability, especially under dynamic loading, vibration, and thermal stress.

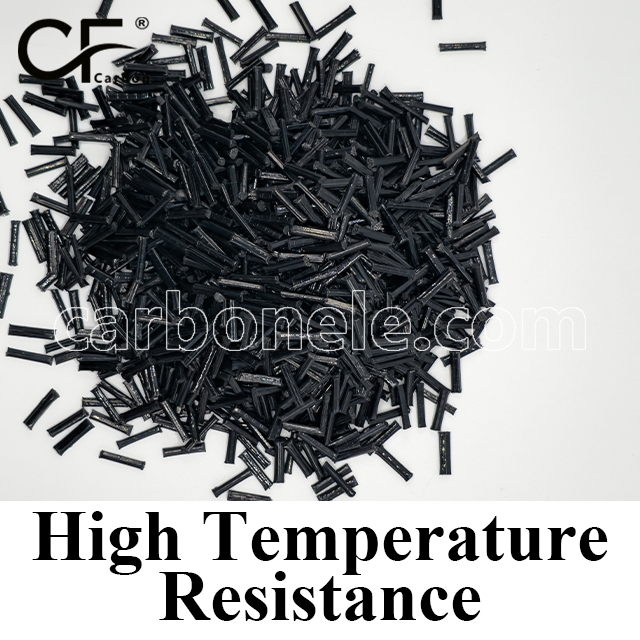

Thermal and Chemical Resistance
PA6-LCF30 maintains outstanding mechanical integrity at elevated temperatures and in chemically aggressive environments.
Heat Deflection Temperature (HDT): Approx. 145°C
Long Term Service Temperature: Up to 130°C
Chemical Resistance: Excellent resistance to oils, greases, fuels, and weak acids; moderate to alkalis; not compatible with strong acids or oxidizers
Its high temperature resilience supports long term structural performance in automotive engine bays and industrial environments.
Wear Resistance and Processing
The 30% long carbon fiber reinforcement enhances wear resistance, dimensional accuracy, and fatigue strength in high load or high friction environments.
Wear Resistance: Very high, suitable for continuous friction and structural stress
Processing Methods: Injection molding (with specialized LCF dosing systems), compression molding
Processing Notes: Use low shear machinery to preserve fiber length; hardened tooling recommended for abrasive filler content
Environmental Adaptability
PA6-LCF30 offers excellent moisture resistance and dimensional control, even in high humidity or temperature cycling conditions.
Water Absorption: Much lower than standard PA6
Dimensional Stability: Excellent maintains precision under thermal and environmental variation
Applications
PA6-LCF30 is built for robust engineering applications that demand a combination of high strength, thermal endurance, and environmental stability. Target sectors include:
Automotive:
Structural under hood brackets and mountings
Lightweight reinforcements with high fatigue tolerance
Chassis and drivetrain carriers
Industrial:
Load bearing machine frames
Robotic arms and linkages
High stress housings and guides
Summary Table for PA6-LCF30
| Characteristic | Value/Description |
|---|---|
| Carbon Fiber Content | 30% (Long Carbon Fiber) |
| Tensile Strength | ≥ 145 MPa |
| Flexural Strength | ≥ 220 MPa |
| Impact Strength | ≥ 13 kJ/m² |
| Heat Deflection Temp. | Approx. 145°C |
| Long Term Service Temp. | Up to 130°C |
| Chemical Resistance | Excellent, except strong acids/oxidizers |
| Water Absorption | Lower than standard PA6 |
| Processing Methods | Injection molding, compression molding |
| Wear Resistance | Very high – ideal for continuous loading |
If you want to get more information about PA6-LCF30, you can vist our Youtube.
Strength Comparsion PA6 and PA6-CF
PA6-CF, reinforced with carbon fiber, exhibits significantly higher strength and stiffness compared to unfilled PA6. While standard PA6 offers good toughness and moderate mechanical properties, the addition of carbon fiber enhances tensile and flexural strength, improving load-bearing capacity and dimensional stability. PA6-CF also has lower creep and reduced thermal expansion, making it more suitable for high performance applications where strength and rigidity are critical. However, PA6 retains better elongation and impact resistance, making it more flexible and less brittle under sudden loads.
