Heat Resistance Superior Material TPU-CF5

  • Model number: TPU-CF-BCA05
  • Matrix Resin: Thermoplastic polyurethane (TPU)
  • Reinforcing Filler: Carbon fiber

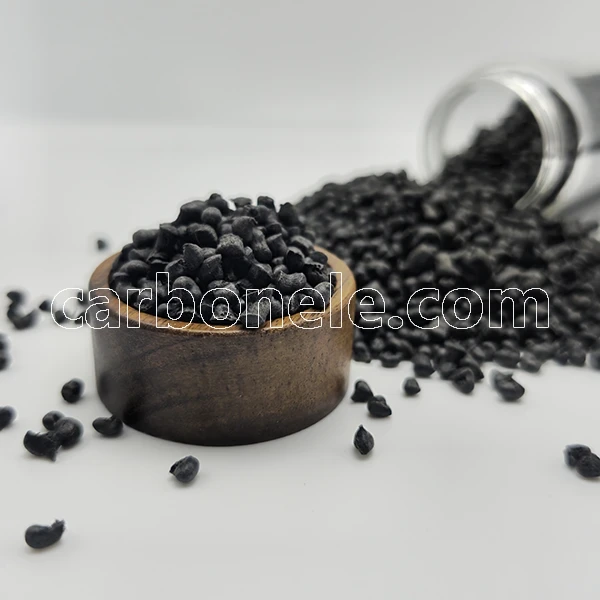

  • Appearance: Granules
  • Grade: Injection/extrusion grade
  • Packaging: 25kgs/bag
Send Inquiry Now

Introduction to TPU-CF5 Material

TPU-CF5 (Thermoplastic Polyurethane with 5% Carbon Fiber) is a high-performance thermoplastic elastomeric composite that incorporates 5% carbon fiber reinforcement within a TPU (thermoplastic polyurethane) matrix. The addition of carbon fiber significantly enhances the mechanical properties of the material, improving its strength, stiffness, and overall durability while maintaining the flexibility and resilience typical of TPU. TPU-CF5 is designed for applications that require a balance between elasticity, wear resistance, and mechanical strength, making it suitable for various industries including automotive, industrial manufacturing, and consumer products.

Characteristics and Values for Enhanced Performance

Carbon Fiber Content: 5%
The 5% carbon fiber content in TPU-CF5 provides an improvement in the material’s tensile and flexural strength without compromising its inherent flexibility. This moderate carbon fiber reinforcement is ideal for applications that demand enhanced mechanical performance while retaining the characteristic flexibility of TPU.

Tensile Strength: ≥ 50 MPa
TPU-CF5 demonstrates solid tensile strength, making it capable of withstanding moderate mechanical loads without permanent deformation. This characteristic makes it well-suited for applications where moderate strength and flexibility are essential.

Flexural Strength: ≥ 80 MPa
The material exhibits good flexural strength, ensuring it can withstand bending forces and return to its original shape after deformation, ideal for parts exposed to repeated bending or flexing.

Impact Strength: ≥ 30 kJ/m²
With improved impact resistance, TPU-CF5 is capable of absorbing moderate shock loads, making it more durable and reliable in applications where sudden impacts or stresses are encountered.

Thermal Properties

Heat Deflection Temperature: Approximately 120°C
TPU-CF5 can maintain its structural integrity in moderate temperature environments, making it suitable for components exposed to temperatures up to 120°C. It performs well in environments where heat resistance is important but extreme temperature stability is not critical.

Long-Term Service Temperature: Up to 90°C
The material can operate in environments with fluctuating temperatures, maintaining consistent performance in demanding applications up to a long-term service temperature of 90°C.

Chemical Stability

TPU-CF5 offers good resistance to a variety of chemicals, including oils, fuels, and solvents, though its chemical resistance is not as high as more specialized composites like PA12-LCF60. It also exhibits a relatively low moisture absorption rate, ensuring stable performance in humid or wet conditions.

Processing Characteristics

TPU-CF5 can be processed using standard manufacturing techniques such as injection molding, extrusion, and 3D printing. The material’s carbon fiber content does not significantly affect its processing behavior, ensuring that high-precision and durable parts can be produced with ease. This makes it a versatile option for producing flexible yet robust components.

Other Characteristics

Low Water Absorption
Like other TPU-based materials, TPU-CF5 has low moisture uptake, which ensures dimensional stability even in humid or wet conditions.

Good Wear Resistance
The incorporation of carbon fibers enhances the wear resistance of TPU-CF5, making it suitable for applications where parts are subjected to friction or repeated movement, such as seals, gaskets, and protective covers.

Applications

Automotive Industry:
TPU-CF5 is ideal for components that require moderate strength and flexibility, such as gaskets, seals, and bushings, where resistance to wear and shock is important without sacrificing flexibility.

Industrial Manufacturing:
In industrial applications, TPU-CF5 can be used in protective covers, tubing, and seals, where a balance between mechanical strength, wear resistance, and elasticity is necessary.

Consumer Goods:
TPU-CF5 is suitable for manufacturing durable consumer products like footwear, sporting goods, and mobile phone cases, which require flexibility combined with enhanced mechanical properties.

Summary Table

Characteristic Value/Description
Carbon Fiber Content 5%
Tensile Strength ≥ 50 MPa
Flexural Strength ≥ 80 MPa
Impact Strength ≥ 30 kJ/m²
Heat Deflection Temperature Approximately 120°C
Long-Term Service Temperature Up to 90°C
Chemical Resistance Good resistance to oils, fuels, solvents
Water Absorption Low
Processing Methods Injection molding, extrusion, 3D printing

If you want to get more information aboutTPU-CF5, you can vist our Youtube.

You can click here to contact us.

Friction coefficient of PA12-LCF

The friction coefficient of TPU is typically between 0.3 and 0.5, while TPU-CF, with added carbon fiber, lowers the friction coefficient to between 0.2 and 0.4. The smaller the value, the better the wear resistance. Therefore, TPU-CF generally offers better wear resistance than pure TPU, especially under high-load conditions.

Send Inquiry Now

The tensile strength of TPU is typically 30-60 MPa, while TPU-CF, enhanced with carbon fiber, has a tensile strength of 70-120 MPa. Therefore, TPU-CF is significantly stronger than pure TPU, making it more suitable for high-strength applications.

Related Product

TPU CF20 20% Carbon Fiber Reinforcement Polymer
TPU CF20 20% Carbon Fiber R...
Lightweight 40% CF Filled TPU CF40 for Racing Cars
Lightweight 40% CF Filled T...
High Quality Weather Resistance TPU CF10 Composites
High Quality Weather Resist...
Black Carbon Fiber TPU Composite Materials for TPU-CF PPF
Black Carbon Fiber TPU Comp...
High Strength TPU CF20 for Snowboards
High Strength TPU CF20 for ...
Wear Resistance TPU-CF50: High Strength Material
Wear Resistance TPU-CF50: H...
Frequently Asked Questions

Carbon (Xiamen) New Material Co., Ltd. aims to provide buyers with "one-stop" worry-free high-quality services. Here you can find all information about carbon fiber engineering plastics. If you still have questions, please send us an email for consultation!

  • How can I contact the manufacturer of a product that interests me?

    When you find a product you are interested in, you can contact the manufacturer directly by sending an email and we will get back to you as soon as possible.

  • How do I find the products that interest me?

    All you need to do is enter the keyword, product name in the search window and press the Enter key on your keyboard. Your search results page will then be displayed. You can also search within the product category pages on the home page. Each category is divided into subcategories, allowing you to refine your search and find products that interest you.

  • Where will I find a buying guide?

    Please contact our after-sales service directly and we will provide you with a comprehensive operating guide.

  • What are CF Reinforced Thermoplastic Composites?

    CF Reinforced Thermoplastic Composites are materials where carbon fibers are incorporated into a thermoplastic matrix. They combine the strength and stiffness of carbon fibers with the processability and recyclability of thermoplastics. For instance, they are used in automotive parts like bumper beams.

  • What are the benefits of CF Reinforced Thermoplastic Composites over traditional composites?

    The key benefits include faster production cycles, easier recyclability, and better impact resistance. They also offer design flexibility. An example is in the manufacturing of consumer electronics casings where complex shapes can be achieved more easily.

  • How are CF Reinforced Thermoplastic Composites processed?

    Common processing methods include injection molding, extrusion, and compression molding. Injection molding is widely used for mass production. For example, in the production of small components for the medical industry.

  • What industries use CF Reinforced Thermoplastic Composites?

    They are utilized in aerospace, automotive, medical, and sports equipment industries. In aerospace, they can be found in interior components. In the medical field, they might be used in prosthetics.

  • How does the carbon fiber content affect the properties of the composites?

    Higher carbon fiber content generally leads to increased strength and stiffness but may reduce ductility. A moderate content is often balanced for specific applications. For example, a higher content might be preferred in structural parts of a race car.

  • What are the challenges in using CF Reinforced Thermoplastic Composites?

    Challenges include higher material costs, complex processing equipment requirements, and ensuring uniform fiber dispersion. Issues with adhesion between the fibers and the matrix can also arise. An example is in achieving consistent quality in large-scale production.
