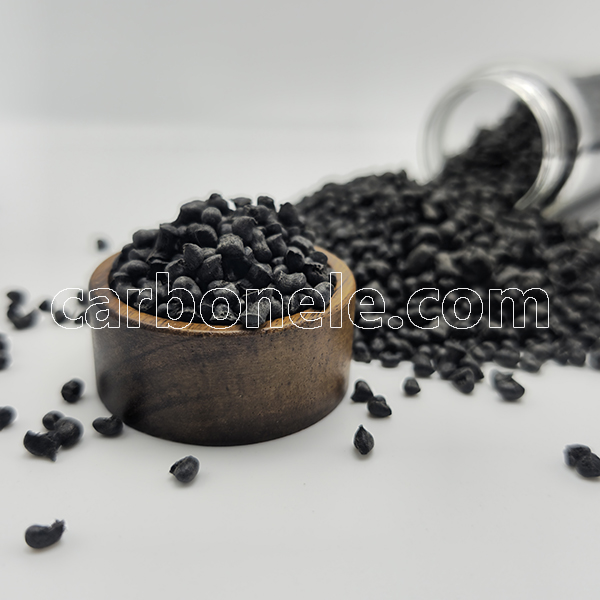

PPA CF50 combines Polyphthalamide (PPA) with 50% carbon fiber, offering exceptional strength, stiffness, and heat resistance up to 200°C. It’s ideal for lightweight, high-performance applications in automotive, aerospace, and industrial sectors requiring robust materials.
PPA CF50 refers to a composite material combining Polyphthalamide (PPA) with 50% carbon fiber reinforcement. This composition offers a unique blend of properties that make it suitable for a variety of demanding applications across several industries. Let’s delve into the specifics of PPA+CF50, exploring its composition, properties, manufacturing processes, and notable applications.
PPA CF50 is primarily composed of two main constituents:
1. Polyphthalamide (PPA):
– PPA is a semi-crystalline engineering thermoplastic known for its high mechanical strength, stiffness, and excellent resistance to heat and chemicals.
– It exhibits a relatively high glass transition temperature (Tg) and can withstand temperatures up to around 200°C (392°F) depending on specific grades.
– PPA resins typically offer good dimensional stability and low moisture absorption, contributing to their suitability in various industrial applications.
2. Carbon Fiber Reinforcement:
– The defining characteristic of PPA CF50 is its reinforcement with 50% by weight of carbon fibers.
– Carbon fibers are extremely strong and lightweight, providing exceptional tensile strength, stiffness, and resistance to fatigue.
– These fibers are typically manufactured from polyacrylonitrile (PAN) precursor materials and undergo a series of processing steps to achieve the desired properties.
PPA CF 50 exhibits a range of properties that combine the strengths of both PPA and carbon fiber reinforcement:
1. Mechanical Properties:
– High Strength: The addition of carbon fibers significantly enhances the tensile strength and modulus of the composite, making it suitable for structural applications requiring robust performance.
– Stiffness: Carbon fibers contribute to the high stiffness of the material, which helps maintain structural integrity under mechanical loads.
– Fatigue Resistance: Carbon fibers improve the fatigue resistance of PPA CF50, making it suitable for applications involving cyclic loading conditions.
2. Thermal Properties:
– High Temperature Resistance: PPA CF 50 retains its mechanical properties at elevated temperatures, typically up to around 200°C (392°F), depending on specific grades of PPA used.
– Thermal Stability: PPA as a matrix material provides good thermal stability, ensuring the composite can withstand thermal cycling without significant degradation.
3. Chemical Resistance:
– PPA CF50 exhibits good resistance to a wide range of chemicals, oils, and fuels, making it suitable for applications where exposure to harsh chemical environments is expected.
4. Dimensional Stability:
– PPA CF50 typically maintains good dimensional stability over a wide range of temperatures, which is beneficial for applications requiring tight tolerances and precise dimensions.
The manufacturing of PPA CF 50 involves several key processes:
1. Compounding: The PPA resin and carbon fibers are compounded together to ensure uniform distribution of the fibers within the polymer matrix.
2. Molding: The compounded material can be processed using various molding techniques such as injection molding, compression molding, or resin transfer molding (RTM) depending on the specific requirements of the application.
3. Post-processing: After molding, the parts may undergo additional finishing processes such as machining or surface treatment to achieve the desired final properties and surface quality.
It is well-suited for a wide range of applications across different industries, including:
1. Automotive:
– Structural components in automotive applications such as chassis components, engine mounts, and transmission components where high strength-to-weight ratio and durability are critical.
2. Aerospace:
– Lightweight structural components for aircraft interiors and exteriors, including panels, brackets, and housings where weight reduction and high mechanical performance are essential.
3. Industrial:
– Machinery components and tooling where high strength, stiffness, and dimensional stability are required, such as gears, bearings, and wear-resistant parts.
4. Electronics:
– Enclosures and structural components in electronic devices where lightweight materials with good mechanical and thermal properties are necessary.
5. Sporting Goods:
– Bicycle frames, tennis rackets, and other sporting equipment benefiting from the combination of lightweight construction and high strength.
PPA CF50 represents a cutting-edge composite material combining the superior mechanical properties of carbon fibers with the thermal and chemical resistance of Polyphthalamide (PPA). Its versatility makes it suitable for a wide range of applications in automotive, aerospace, industrial, and consumer sectors where lightweight, durable materials are required. As technology advances and material science continues to evolve, it remains at the forefront of innovative composite materials, offering enhanced performance and reliability in demanding environments.
Morbi iaculis at quam vel faucibus. Ut semper ipsum ex, quis aliquet justo pretium a. Suspendisse scelerisque metus augue, a interdum leo iaculis sed. Vivamus sit amet nunc odio. Duis vel pulvinar dolor, at lacinia tellus.
Pellentesque habitant morbi tristique senectus et netus et malesuada fames ac turpis egestas. Suspendisse lacinia quam a elit lobortis tempor
Morbi iaculis at quam vel faucibus. Ut semper ipsum ex, quis aliquet justo pretium a. Suspendisse scelerisque metus augue, a interdum leo iaculis sed. Vivamus sit amet nunc odio. Duis vel pulvinar dolor, at lacinia tellus.
Pellentesque habitant morbi tristique senectus et netus et malesuada fames ac turpis egestas. Suspendisse lacinia quam a elit lobortis tempor
Carbon (Xiamen) New Material Co., Ltd. aims to provide buyers with "one-stop" worry-free high-quality services. Here you can find all information about carbon fiber engineering plastics. If you still have questions, please send us an email for consultation!
How can I contact the manufacturer of a product that interests me?
When you find a product you are interested in, you can contact the manufacturer directly by sending an email and we will get back to you as soon as possible.
How do I find the products that interest me?
All you need to do is enter the keyword, product name in the search window and press the Enter key on your keyboard. Your search results page will then be displayed. You can also search within the product category pages on the home page. Each category is divided into subcategories, allowing you to refine your search and find products that interest you.
Where will I find a buying guide?
Please contact our after-sales service directly and we will provide you with a comprehensive operating guide.
What are CF Reinforced Thermoplastic Composites?
CF Reinforced Thermoplastic Composites are materials where carbon fibers are incorporated into a thermoplastic matrix. They combine the strength and stiffness of carbon fibers with the processability and recyclability of thermoplastics. For instance, they are used in automotive parts like bumper beams.
What are the benefits of CF Reinforced Thermoplastic Composites over traditional composites?
The key benefits include faster production cycles, easier recyclability, and better impact resistance. They also offer design flexibility. An example is in the manufacturing of consumer electronics casings where complex shapes can be achieved more easily.
How are CF Reinforced Thermoplastic Composites processed?
Common processing methods include injection molding, extrusion, and compression molding. Injection molding is widely used for mass production. For example, in the production of small components for the medical industry.
What industries use CF Reinforced Thermoplastic Composites?
They are utilized in aerospace, automotive, medical, and sports equipment industries. In aerospace, they can be found in interior components. In the medical field, they might be used in prosthetics.
How does the carbon fiber content affect the properties of the composites?
Higher carbon fiber content generally leads to increased strength and stiffness but may reduce ductility. A moderate content is often balanced for specific applications. For example, a higher content might be preferred in structural parts of a race car.
What are the challenges in using CF Reinforced Thermoplastic Composites?
Challenges include higher material costs, complex processing equipment requirements, and ensuring uniform fiber dispersion. Issues with adhesion between the fibers and the matrix can also arise. An example is in achieving consistent quality in large-scale production.
