PA612-CF50 is a high performance, carbon fiber reinforced nylon composite with 50% carbon fiber content, offering exceptional mechanical strength, wear resistance, and thermal stability. Ideal for high-duty applications in automotive, industrial manufacturing, and consumer goods, it excels in extreme conditions with superior resistance to chemicals, high temperatures, and friction.
Carbon fiber reinforced nylon PA612-CF50
- Model number: PA612-CF-BCA5
- Matrix Resin: Polyhexamethylene dodecanamide (PA612)
- Reinforcing Filler: Carbon fiber

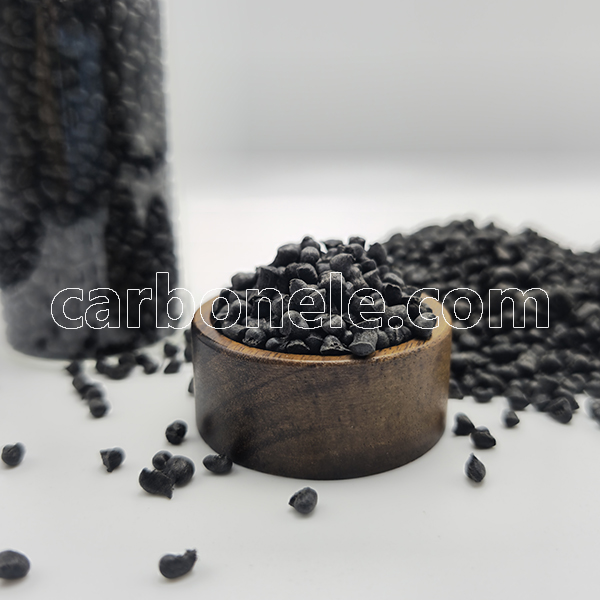

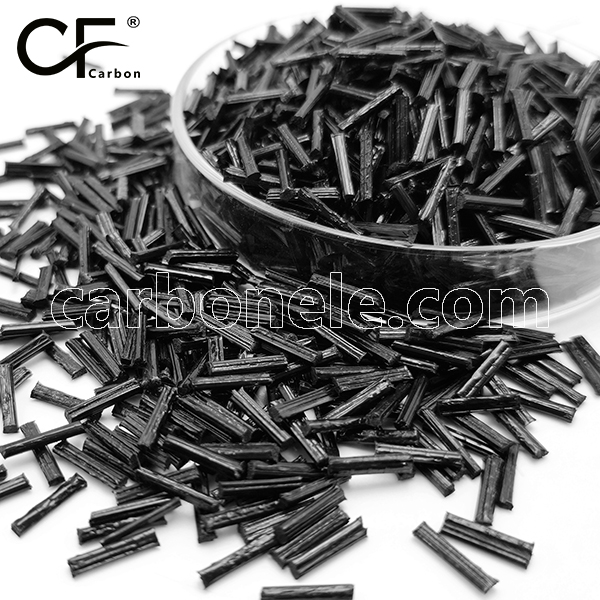

- Appearance: Granules
- Grade: Injection/extrusion grade
- Packaging: 25kgs/bag
Mechanical Properties
PA612-CF50 is designed for outstanding mechanical performance with 50% carbon fiber reinforcement. The high fiber content significantly enhances stiffness, strength, wear resistance, and dimensional stability compared to unreinforced PA612. This increased reinforcement also improves stress resistance and impact strength, making it ideal for applications requiring extreme mechanical loads and superior performance.
Tensile Strength: ≥ 300 MPa
Flexural Strength: ≥ 420 MPa
Impact Strength: ≥ 1.8 kJ/m²
With 50% carbon fiber, PA612-CF50 provides a remarkable balance of strength, durability, and impact resistance, perfect for high duty, high performance applications.
Thermal and Chemical Resistance
PA612-CF50 retains the excellent thermal and chemical stability of pure PA612, with significant improvements from the carbon fiber reinforcement. It can perform reliably in very high temperature environments and offers outstanding resistance to a wide range of chemicals.
Heat Deflection Temperature (HDT): Approx. 270°C
Long-Term Service Temperature: Up to 270°C
Chemical Resistance: Excellent resistance to oils, fuels, solvents, and many chemicals.
PA612-CF50 excels in industrial, automotive, and high performance applications requiring top tier thermal and chemical resistance.
Wear Resistance and Processing
PA612-CF50 delivers exceptional wear resistance, particularly in extreme friction and high stress environments. The 50% carbon fiber content significantly boosts durability, while still allowing good processability with standard thermoplastic methods.
Wear Resistance: Outstanding in high friction conditions, far superior to unreinforced PA612.
Processing Methods: Injection molding, extrusion (reinforced tooling recommended).
Its superb wear resistance and mechanical strength make PA612-CF50 ideal for demanding industrial applications.
Environmental Adaptability
PA612-CF50 offers extremely low moisture absorption and excellent dimensional stability, ensuring consistent performance in environments with fluctuating temperatures and humidity. The high carbon fiber content provides enhanced environmental stability over unreinforced PA612.
Water Absorption: Negligible
Dimensional Stability: Excellent, with minimal expansion or contraction under environmental changes.
PA612-CF50 provides reliable performance in both indoor and outdoor environments, even under extreme conditions.
Applications
PA612-CF50 is designed for extremely high duty applications requiring exceptional mechanical strength, wear resistance, and thermal stability:
Automotive: High stress structural components, brackets, housings, reinforcements, and load bearing parts in extreme environments.
Industrial Manufacturing: Heavy duty parts such as enclosures, fixtures, and structural supports in extreme wear and high load conditions.
Electronics: Protective housings, covers, and components for devices needing high impact resistance and thermal stability.
Consumer Goods: High performance power tool housings, appliance components, and sports equipment requiring superior durability.
Summary Table for PA612-CF50
| Characteristic | Value/Description |
|---|---|
| Carbon Fiber Content | 50% |
| Tensile Strength | ≥ 300 MPa |
| Flexural Strength | ≥ 420 MPa |
| Impact Strength | ≥ 1.8 kJ/m² |
| Heat Deflection Temperature | Approx. 270°C |
| Long-Term Service Temperature | Up to 270°C |
| Chemical Resistance | Excellent |
| Water Absorption | Negligible |
| Processing Methods | Injection molding, extrusion (reinforced tooling recommended) |
| Wear Resistance | Outstanding in high friction conditions |
If you want to get more information about PA612-CF50, you can visit our Youtube.
Strength between PA612 and PA612-CF
PA612 is a strong, chemically resistant nylon with good wear properties, but its mechanical strength is moderate. PA612-CF is the carbon fiber reinforced version, offering significantly higher tensile and flexural strength, improved stiffness, and better wear resistance, making it ideal for high-performance applications.
